FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories
IMSA-11600S-30A-GFN4
CONN FFC VERT .5MM 30POS
FH52-11S-0.5SH
CONN FFC BOTTOM 11POS 0.50MM R/A
2-1734592-7
CONN FPC BOTTOM 27POS 0.50MM R/A
FFC3A20-06-G
06W, 1MM FFC CON, VERT, H5.5MM,
52045-0945
1.25 FFC CONN HSG ASSY STR TYPE
FH23-51S-0.3SHW(06)
CONN FPC BOTTOM 51POS 0.30MM R/A

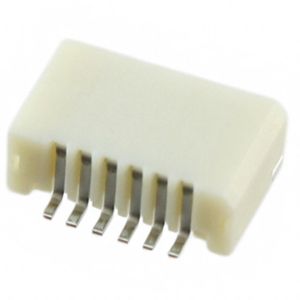

84981-6
CONN FFC FPC TOP 6POS 1.00MM R/A

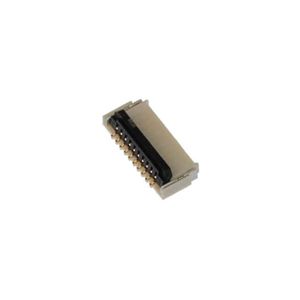

1-2328702-0
0.5MM PITCH DUAL CONTACT BACK FL
046841031100846+
CONN FPC VERT 31POS 0.30MM SMD

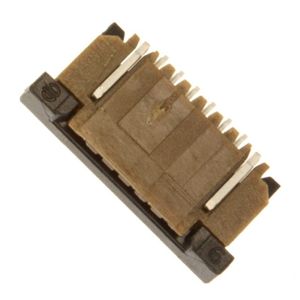

SFW6R-2STE1LF
CONN FFC FPC TOP 6POS 1.00MM R/A

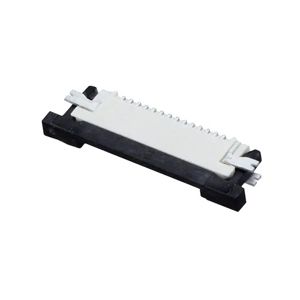

687114183722
CONN FFC BTM 14POS 0.5MM SMD R/A

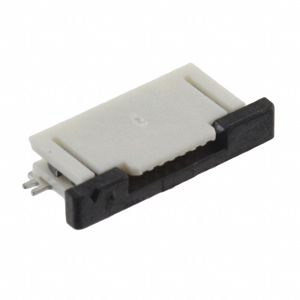

0527450797
CONN FFC TOP 7POS 0.50MM R/A

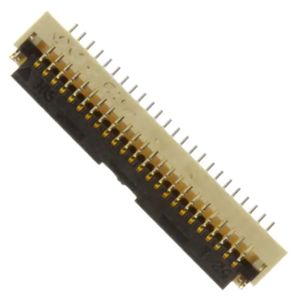

FH19SC-24S-0.5SH(99)
CONN FFC BOTTOM 24POS 0.50MM R/A

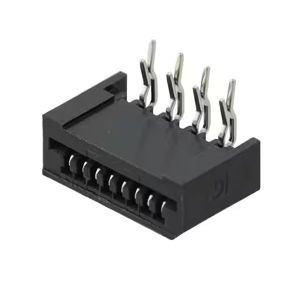

PCB-B-08-SA-25
FPC/FFC CONNECTOR, LIF TYPE, 1.2

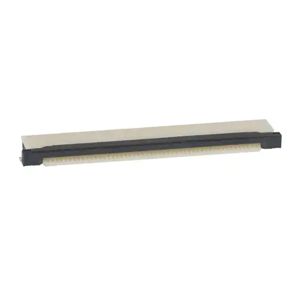

62684-501100ALF
CONN FPC BOTTOM 50POS 0.50MM R/A

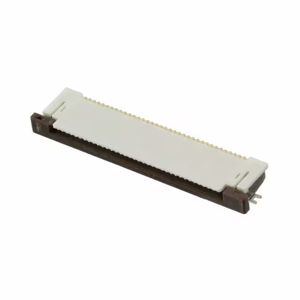

0541043631
CONN FFC TOP 36POS 0.50MM R/A

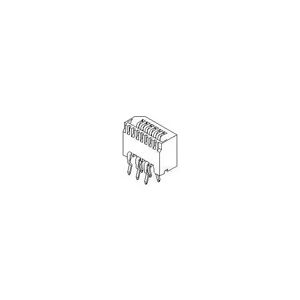

52045-1145
1.25 FFC CONN HSG ASSY STR TYPE

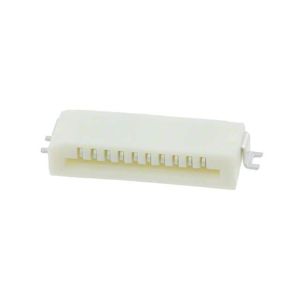

0527931070
CONN FPC TOP 10POS 1.00MM R/A

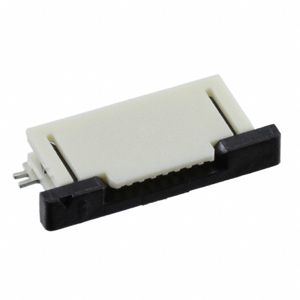

0527450833
CONN FFC FPC TOP 8POS 0.50MM R/A

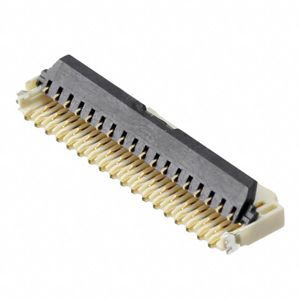

XF3H-3555-31A
CONN FPC BOTTOM 35POS 0.30MM R/A
