FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

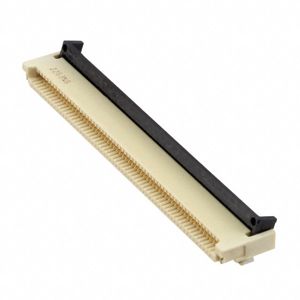

XF3M-6015-1B
CONN FFC FPC 60POS 0.50MM R/A

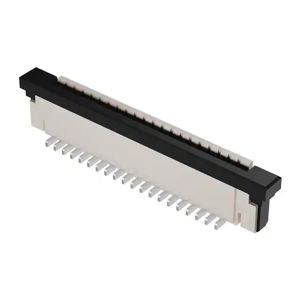

FFC3A20-05-T
05W, 1MM FFC CON, VERT, H5.5MM,

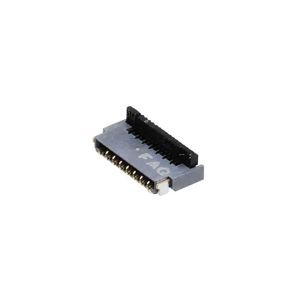

FH35C-15S-0.3SHW(99)
CONN FPC 15POS 0.30MM R/A
FFC3A20-10-T
10W, 1MM FFC CON, VERT, H5.5MM,

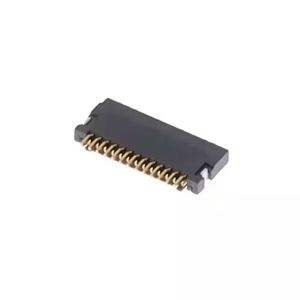

59453-131110EDHLF
CONN FPC BOTTOM 13POS 0.50MM R/A

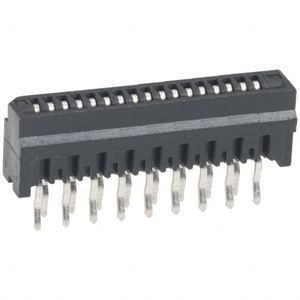

HLW17S-2C7LF
CONN FFC FPC VERT 17POS 1MM PCB

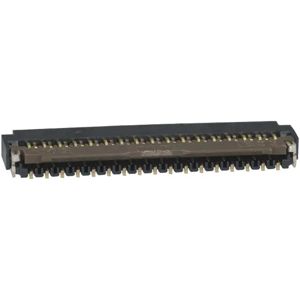

FH26W-33S-0.3SHW(60)
CONN FPC/FFC 33POS .3MM
PCB-B-06-T-25
FPC/FFC CONNECTOR, LIF TYPE, 1.2

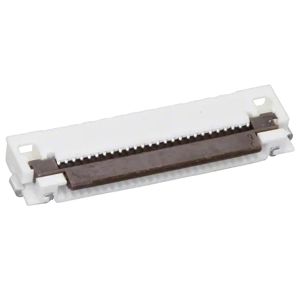

0528922633
CONN FFC BOTTOM 26POS 0.50MM R/A

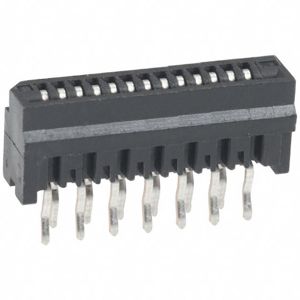

HLW13S-2C7LF
CONN FFC FPC VERT 13POS 1MM PCB

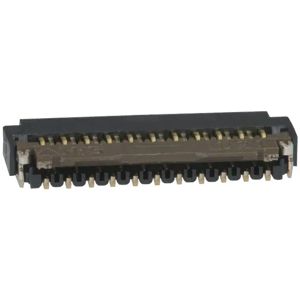

FH26W-21S-0.3SHW(60)
CONN FPC/FFC 21POS .3MM

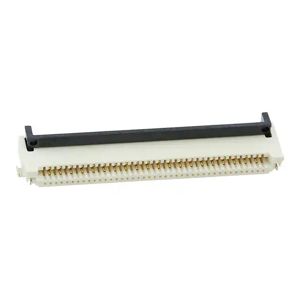

XF3M122151BR100
CONN FFC FPC 22POS 1.00MM R/A

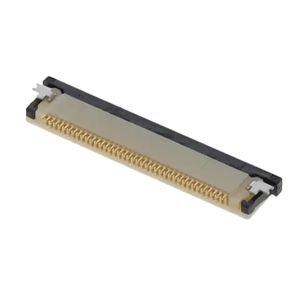

62684-40210E9ALF
CONN FPC TOP 40POS 0.50MM R/A

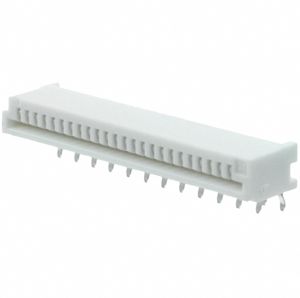

2-84533-4
CONN FFC TOP 24POS 1.25MM R/A

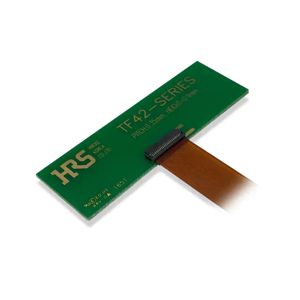

TF42-22S-0.35SH(800)
CONN FFC 22POS 0.35MM SMD

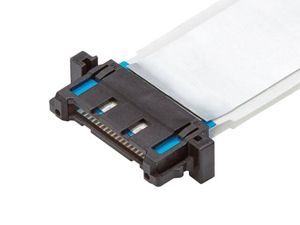

2051950360
0.5 FFC VERTICAL 2ROW PLUG ASSY
SFW6R-3STE1LF
CONN FFC BOTTOM 6POS 1.00MM R/A

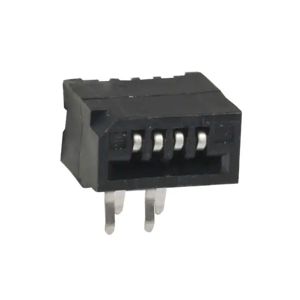

HLW4R-2C7LF
CONN FFC FPC TOP 4POS 1.00MM R/A

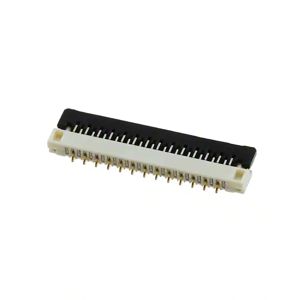

5035662700
CONN FPC BOTTOM 27POS 0.30MM R/A

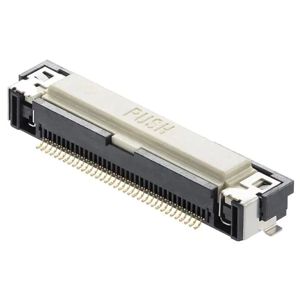

2004850620
0.5 ONE-TOUCH RA 20P GND
