Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

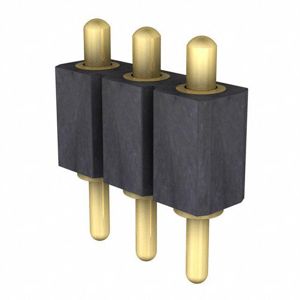

811-S1-003-10-015101
CONN SPRING PISTON 3POS PCB
813-SS-018-30-001101
CONN SPRING PISTON 18POS SMD
813-SS-012-30-001101
CONN SPRING PISTON 12POS SMD

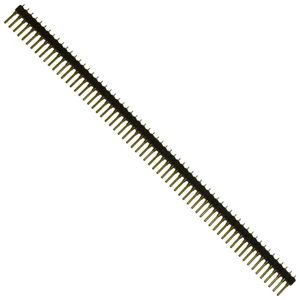

816-22-064-10-009101
CONN SPRING PISTON 64POS PCB

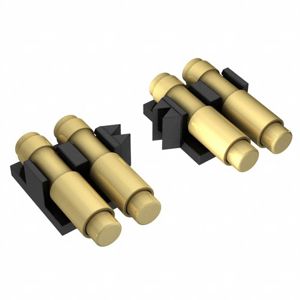

8MM-11-0007-02-131191
CONN SPRING TARGET 7POS R/A SMD
815-22-001-30-001101
CONN SPRING PISTON 1POS SMD
811-S1-038-10-017101
CONN SPRING PISTON 38POS PCB
811-S1-008-30-017101
CONN SPRING PISTON 8POS SMD

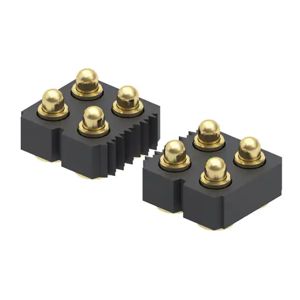

813-22-020-30-000101
CONN SPRING PISTON 20POS SMD
815-22-030-30-001101
CONN SPRING PISTON 30POS SMD

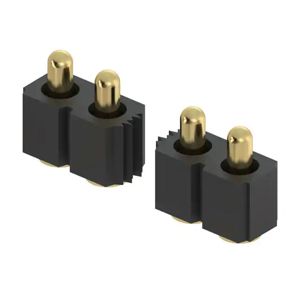

811-22-032-30-002101
CONN SPRING PISTON 32POS SMD

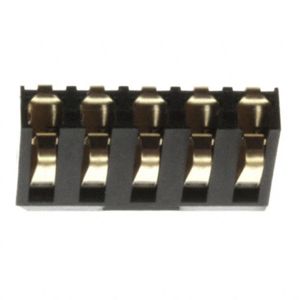

70AAJ-5-M0
CONN SPRING MOD MALE 5POS SMD
811-SS-008-30-005101
CONN SPRING PISTON 8POS SMD

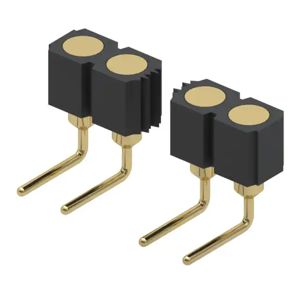

399-10-157-10-008000
CONN SPRING TARGET 57POS R/A PCB

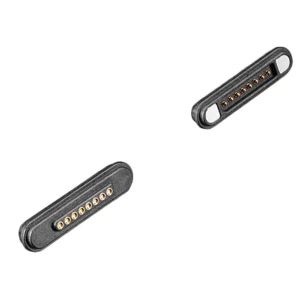

5469
DIY MAGNETIC CONNECTOR - STRAIGH
813-22-056-30-000101
CONN SPRING PISTON 56POS SMD

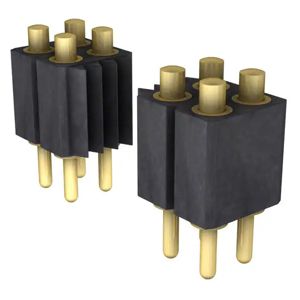

813-S1-012-10-017101
CONN SPRING PISTON 12POS PCB

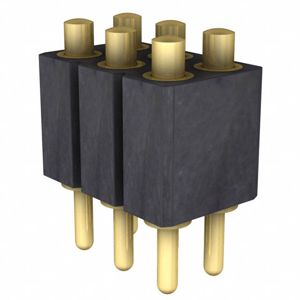

813-S1-006-10-017101
CONN SPRING PISTON 6POS PCB

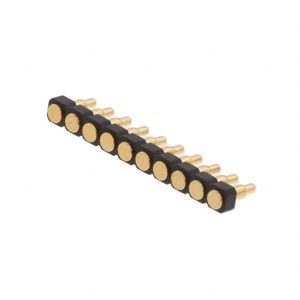

PH1-3B-10-MVF-4360
CONN SPRING PISTON 10POS SMD

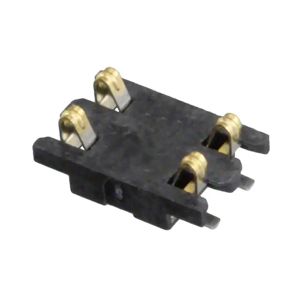

0788640001
CONN SPRING BATTERY 4POS SMD
