Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

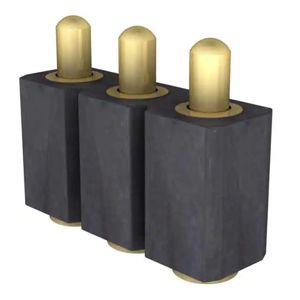

811-SS-003-30-678101-CLIP
CONN SPRING PISTON 3POS SMD, HIG

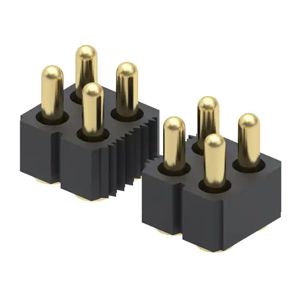

813-22-052-30-004101
CONN SPRING PISTON 52POS SMD

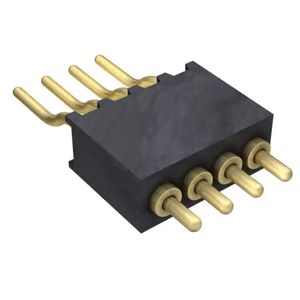

854-22-004-40-601101
CONN SPRING PISTON 4POS R/A SMD
811-S1-048-10-017101
CONN SPRING PISTON 48POS PCB

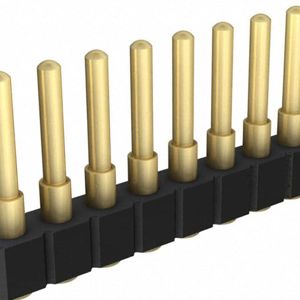

812-22-064-30-001101
CONN SPRING PISTON 64POS SMD

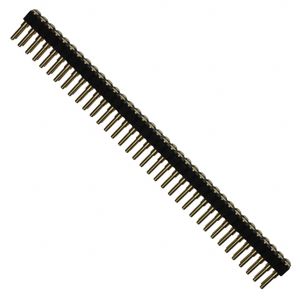

814-22-072-30-006101
CONN SPRING PISTON 72POS SMD
811-SS-010-30-021101
CONN SPRING PISTON 10POS SMD

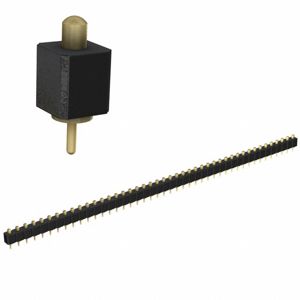

821-22-044-10-001101
CONN SPRING PISTON 44POS PCB

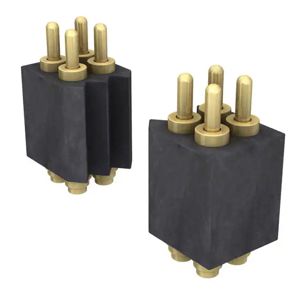

855-22-020-30-001101
CONN SPRING PISTON 20POS SMD
811-S1-031-10-016101
CONN SPRING PISTON 31POS PCB

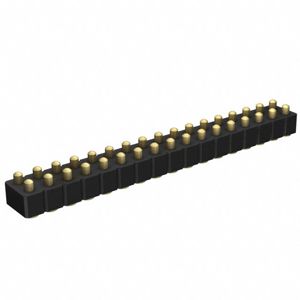

813-22-034-30-001101
CONN SPRING PISTON 34POS SMD

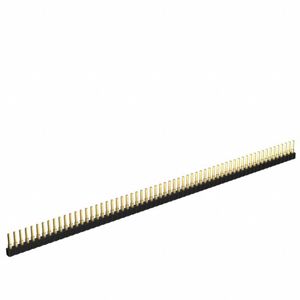

812-22-062-30-000101
CONN SPRING PISTON 62POS SMD

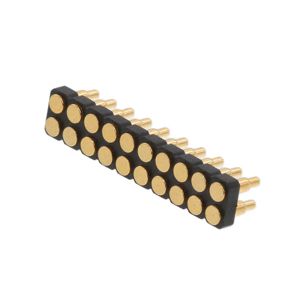

PH2-3B-20-MVF-4360-C1
CONN SPRING PISTON 20POS SMD

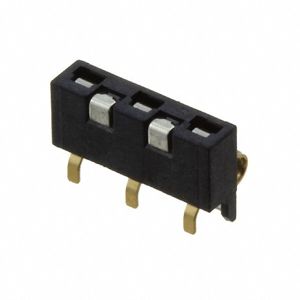

292448-1
CONN SPRING BATTERY 3POS SMD

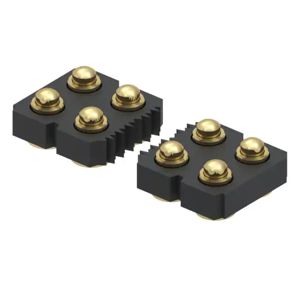

817-22-064-30-001101
CONN SPRING PISTON 64POS SMD

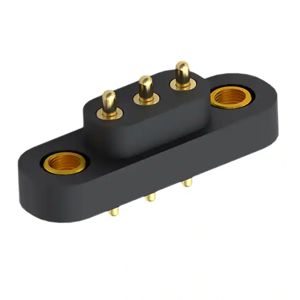

858-22-003-10-011101
CONN SPRING PISTON 3POS PCB
811-S1-035-10-014101
CONN SPRING PISTON 35POS PCB

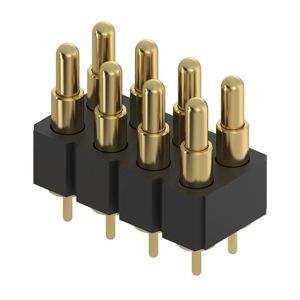

818-22-008-10-002101
CONN SPRING PISTON 8POS PCB

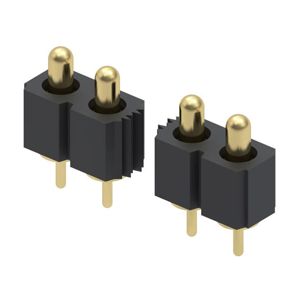

821-22-028-10-002101
CONN SPRING PISTON 28POS PCB

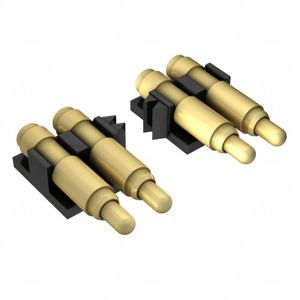

8PM-11-0010-02-131191
CONN SPRING PISTON 10POS R/A SMD
