Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

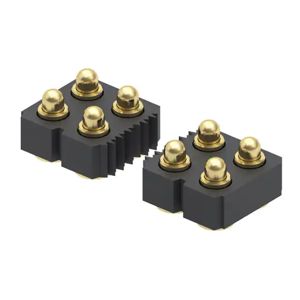

813-22-012-30-000101
CONN SPRING PISTON 12POS SMD

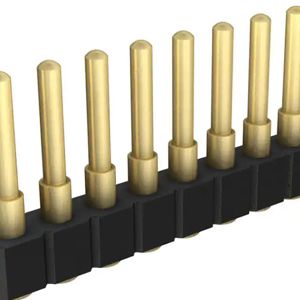

812-22-026-30-002101
CONN SPRING PISTON 26POS SMD

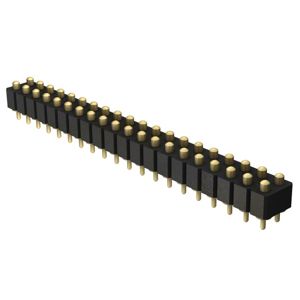

823-22-040-10-001101
CONN SPRING PISTON 40POS PCB

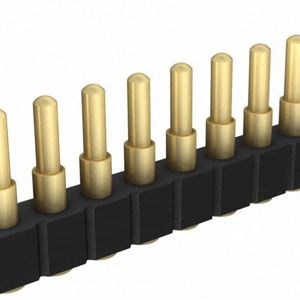

812-22-049-30-004101
CONN SPRING PISTON 49POS SMD

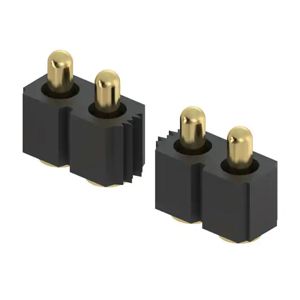

811-22-013-30-002101
CONN SPRING PISTON 13POS SMD
813-SS-018-30-003191
CONN SPRING PISTON 18POS SMD
813-SS-014-30-007101
CONN SPRING PISTON 14POS SMD

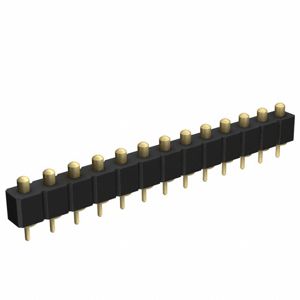

821-22-013-10-001101
CONN SPRING PISTON 13POS PCB

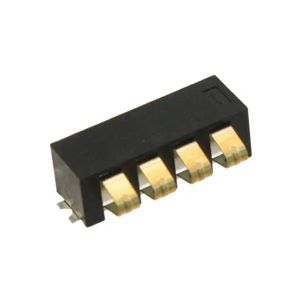

009155004541006
CONN SPRING BATTERY 4POS R/A SMD

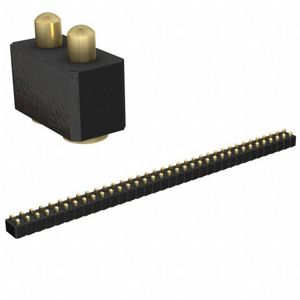

813-22-070-30-001101
CONN SPRING PISTON 70POS SMD
813-22-068-30-000101
CONN SPRING PISTON 68POS SMD

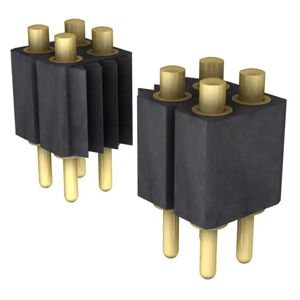

813-S1-030-10-017101
CONN SPRING PISTON 30POS PCB

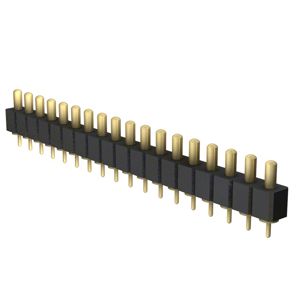

821-22-018-10-004101
CONN SPRING PISTON 18POS PCB

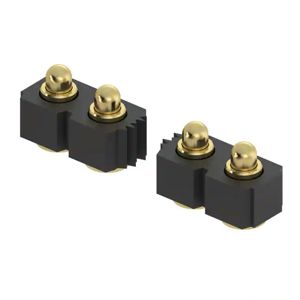

811-22-012-30-000101
CONN SPRING PISTON 12POS SMD

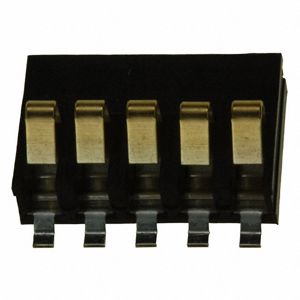

009155005002016
CONN SPRING BATTERY 5POS SMD
813-22-058-30-000101
CONN SPRING PISTON 58POS SMD

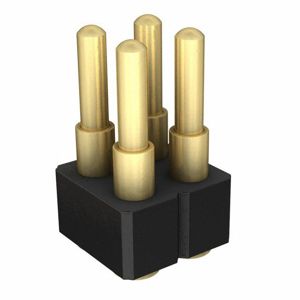

814-22-004-30-000101
CONN SPRING PISTON 4POS SMD

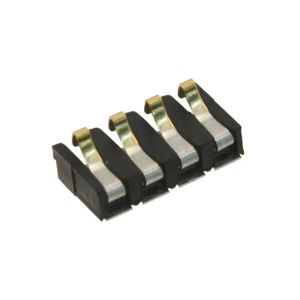

009155004201006
CONN SPRING BATTERY 4POS SMD
399-10-108-10-008000
CONN SPRING TARGET 8POS R/A PCB

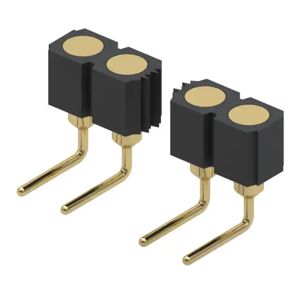

399-10-143-10-008000
CONN SPRING TARGET 43POS R/A PCB
