Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

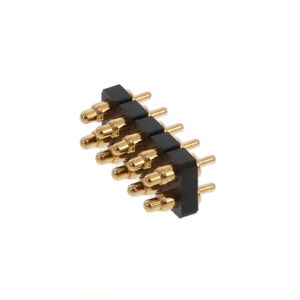

PH2-3B-10-MVP-3345
CONN SPRING PISTON 10POS PCB

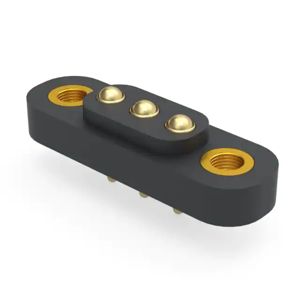

845-22-003-10-011101
4MM PITCH SINGLE ROW THROUGH HOL

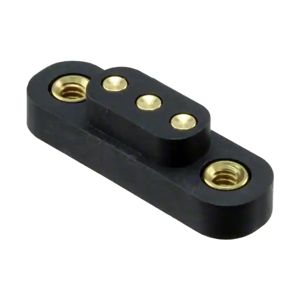

858-10-003-30-012000
CONN SPRING TARGET 3POS SMD
811-S1-036-10-015101
CONN SPRING PISTON 36POS PCB

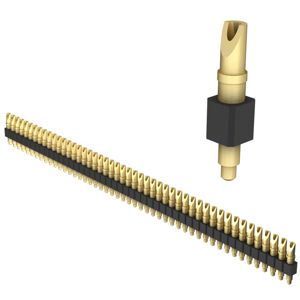

824-22-048-00-001000
CONN SPRING PISTON 48POS SLD PCB

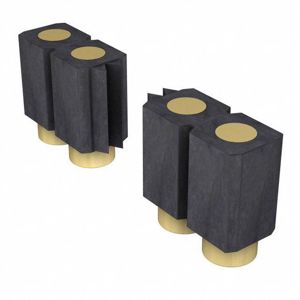

800-10-005-30-507191
CONN SPRING TARGET 5POS SMD
821-22-053-10-000101
CONN SPRING PISTON 53POS PCB

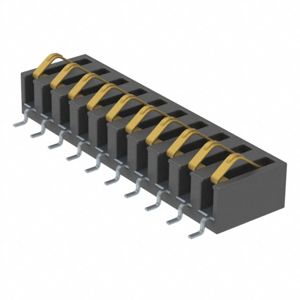

SIB-110-02-F-S
CONN SPRING MOD 10POS SMD

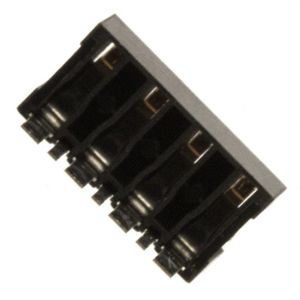

009155004301006
CONN SPRING BATTERY 4POS R/A SMD

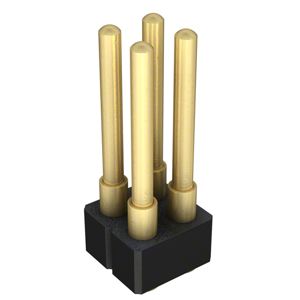

814-22-004-30-009101
CONN SPRING PISTON 4POS SMD
811-SS-007-30-007101
CONN SPRING PISTON 7POS SMD
813-SS-014-30-003191
CONN SPRING PISTON 14POS SMD
811-SS-005-30-023101
CONN SPRING PISTON 5POS SMD

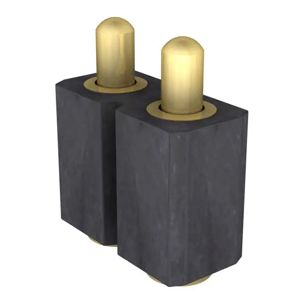

811-SS-002-30-007191
CONN SPRING PISTON 2POS SMD

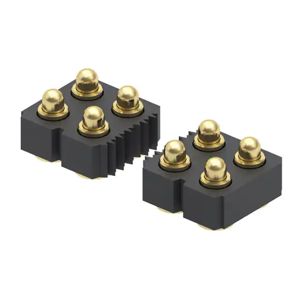

813-22-034-30-000101
CONN SPRING PISTON 34POS SMD

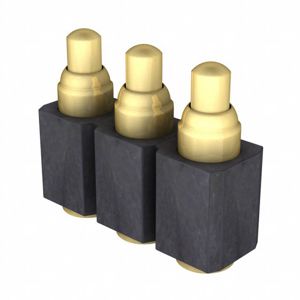

821-S1-003-30-013191
CONN SPRING PISTON 3POS SMD

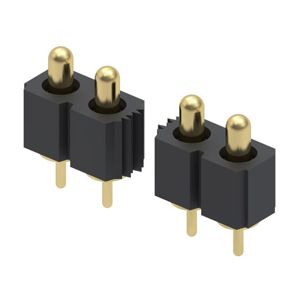

821-22-063-10-002101
CONN SPRING PISTON 63POS PCB

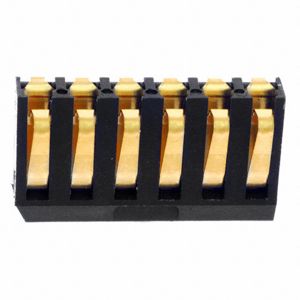

70AAJ-6-M0
CONN SPRING MOD MALE 6POS SMD

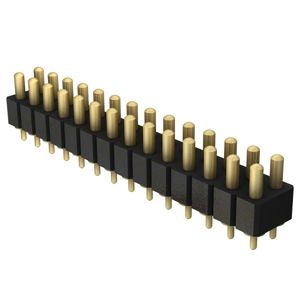

823-22-028-10-004101
CONN SPRING PISTON 28POS PCB

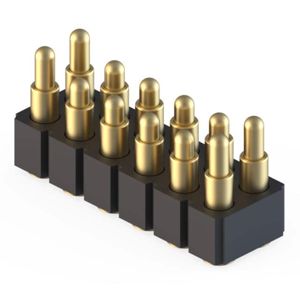

814-22-012-30-030101
FMLB SPRING-LOADED CONN, SMT DOU
