Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

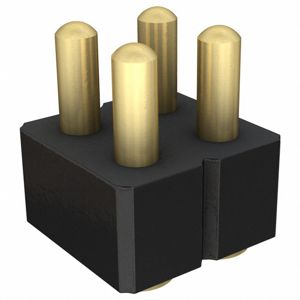

813-22-004-30-004101
CONN SPRING PISTON 4POS SMD
811-S1-043-10-016101
CONN SPRING PISTON 43POS PCB

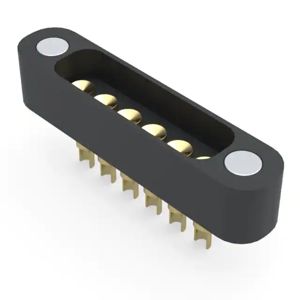

878-20-006-00-011000
MAGNETIC SPRING-LOADED TARGET CO

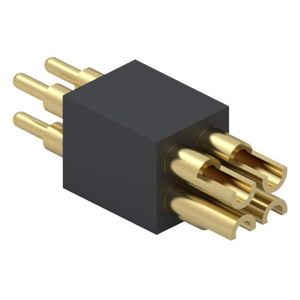

855-22-004-10-003101
CONN SPRING PISTON 4POS SLD PCB

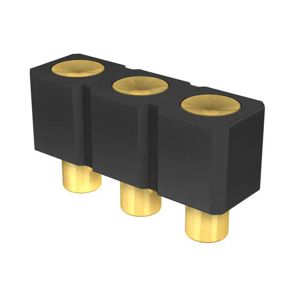

319-10-103-30-008000
CONN SPRING TARGET 3POS SMD

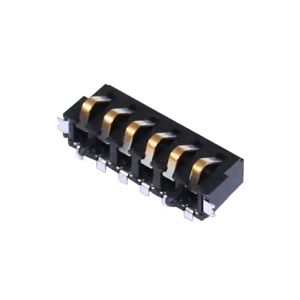

009155006852006
CONN SPRING BATTERY 6POS R/A SMD
399-10-145-10-008000
CONN SPRING TARGET 45POS R/A PCB

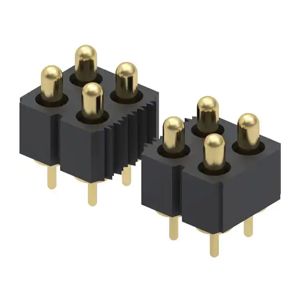

823-22-038-10-002101
CONN SPRING PISTON 38POS PCB
811-S1-020-10-016101
CONN SPRING PISTON 20POS PCB

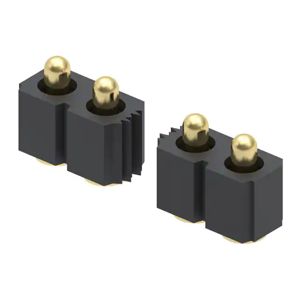

811-22-009-30-001101
CONN SPRING PISTON 9POS SMD
811-S1-007-10-016101
CONN SPRING PISTON 7POS PCB

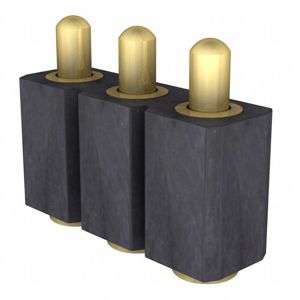

811-SS-003-30-025101
CONN SPRING PISTON 3POS SMD

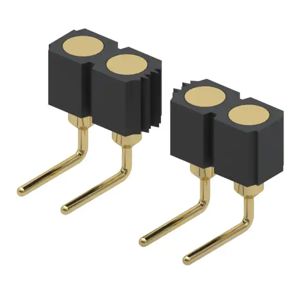

399-10-124-10-008000
CONN SPRING TARGET 24POS R/A PCB
811-S1-032-10-015101
CONN SPRING PISTON 32POS PCB

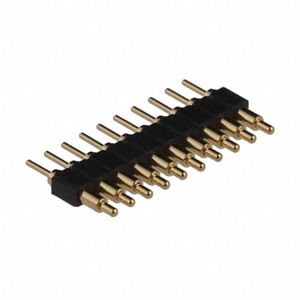

836-22-010-10-001101
CONN SPRING PISTON 10POS PCB

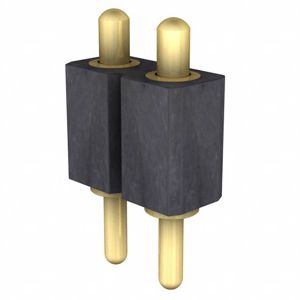

811-S1-002-10-014101
CONN SPRING PISTON 2POS PCB

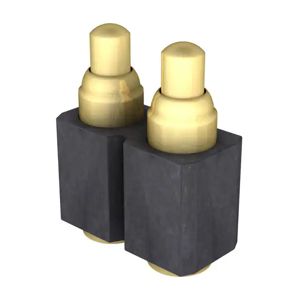

821-S1-002-30-013101
CONN SPRING PISTON 2POS SMD
813-SS-020-30-002191
CONN SPRING PISTON 20POS SMD

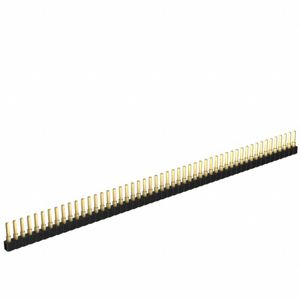

812-22-051-30-000101
CONN SPRING PISTON 51POS SMD
821-22-015-10-003101
CONN SPRING PISTON 15POS PCB
