Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
811-S1-052-10-014101
CONN SPRING PISTON 52POS PCB

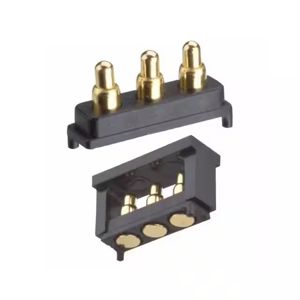

P20-0345R
CONN SPRING PISTON 3POS SMD

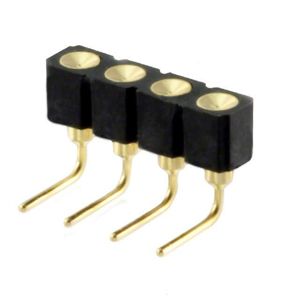

399-10-104-10-007000
CONN SPRING TARGET 4POS R/A PCB

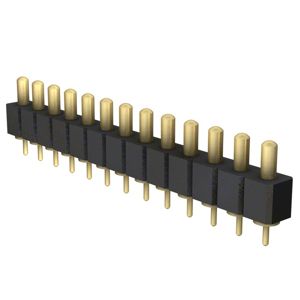

821-22-013-10-004101
CONN SPRING PISTON 13POS PCB

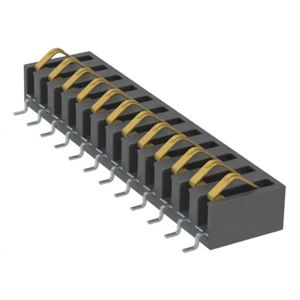

SIB-112-02-F-S-LC
CONN SPRING MOD 12POS SMD
813-SS-014-30-022101
CONN SPRING PISTON 14POS SMD

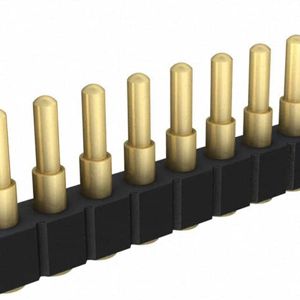

812-22-029-30-004101
CONN SPRING PISTON 29POS SMD

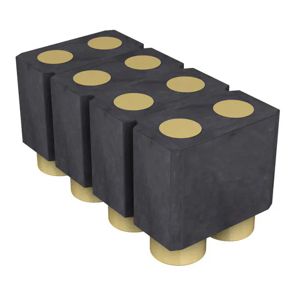

802-10-008-30-507191
CONN SPRING TARGET 8POS SMD

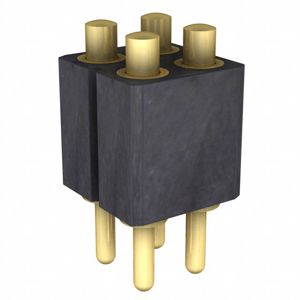

813-S1-004-10-017101
CONN SPRING PISTON 4POS PCB
811-SS-010-30-002191
CONN SPRING PISTON 10POS SMD

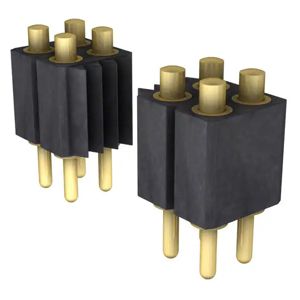

813-S1-060-10-015101
CONN SPRING PISTON 60POS PCB
823-S1-010-30-012191
CONN SPRING PISTON 10POS SMD

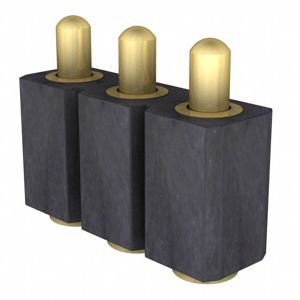

811-SS-003-30-002191
CONN SPRING PISTON 3POS SMD

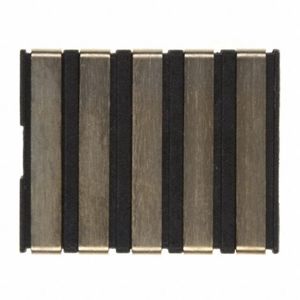

70AAJ-5-F0
CONN SPRING MOD FEMALE 5POS SMD

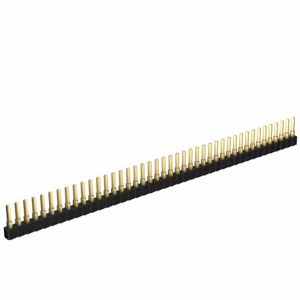

812-22-042-30-000101
CONN SPRING PISTON 42POS SMD

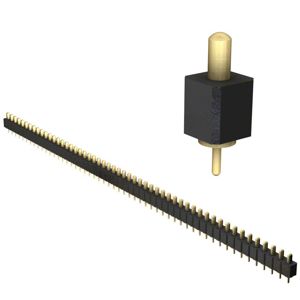

821-22-053-10-003101
CONN SPRING PISTON 53POS PCB

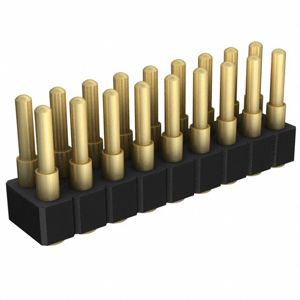

814-22-018-30-001101
CONN SPRING PISTON 18POS SMD

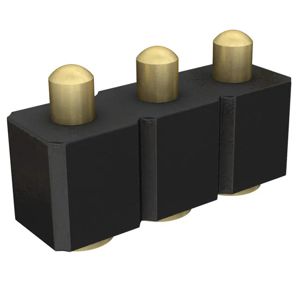

811-22-003-30-001101
CONN SPRING PISTON 3POS SMD

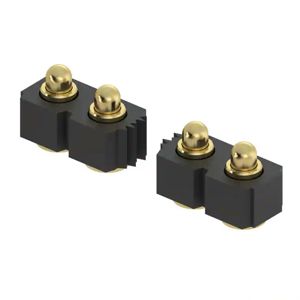

811-22-022-30-000101
CONN SPRING PISTON 22POS SMD

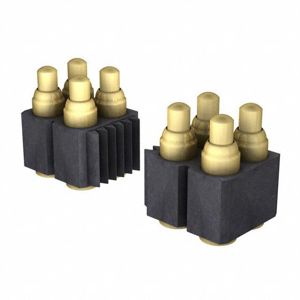

823-S1-018-30-013191
CONN SPRING PISTON 18POS SMD
