Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

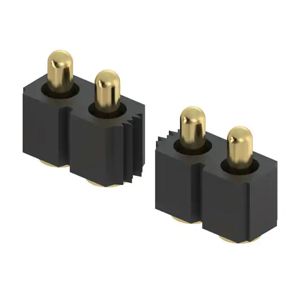

811-22-035-30-002101
CONN SPRING PISTON 35POS SMD
399-10-121-10-008000
CONN SPRING TARGET 21POS R/A PCB
811-S1-033-10-015101
CONN SPRING PISTON 33POS PCB

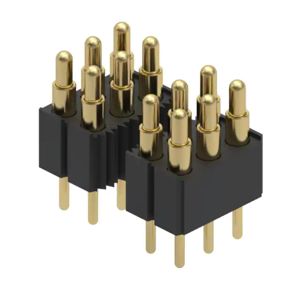

804-22-018-10-004101
CONN SPRING PISTON 18POS PCB

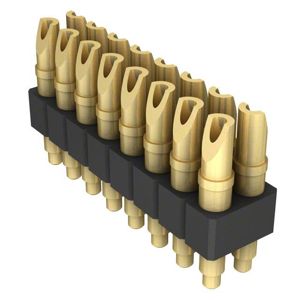

826-22-016-00-005000
CONN SPRING PISTON 16POS SLD PCB

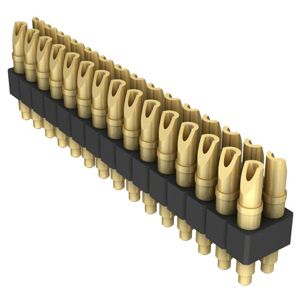

826-22-030-00-001000
CONN SPRING PISTON 30POS SLD PCB

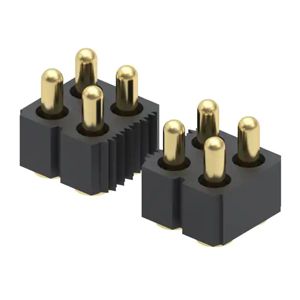

813-22-012-30-003101
CONN SPRING PISTON 12POS SMD

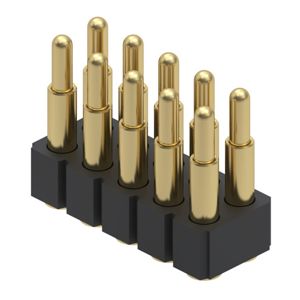

839-22-010-30-001101
CONN SPRING PISTON 10POS SMD
813-SS-012-30-004191
CONN SPRING PISTON 12POS SMD

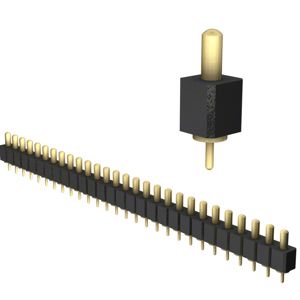

821-22-028-10-004101
CONN SPRING PISTON 28POS PCB
811-SS-006-30-006191
CONN SPRING PISTON 6POS SMD

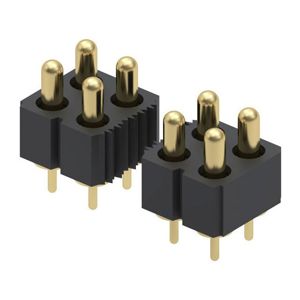

823-22-028-10-003101
CONN SPRING PISTON 28POS PCB

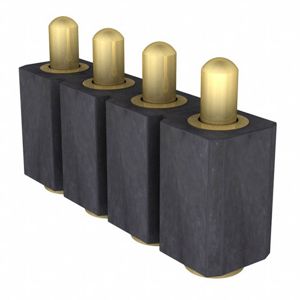

811-SS-004-30-025101
CONN SPRING PISTON 4POS SMD

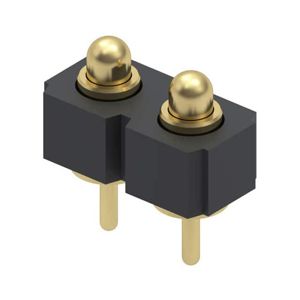

821-22-002-10-000101
CONN SPRING PISTON 2POS PCB

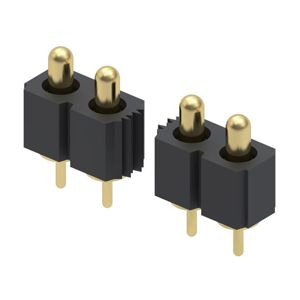

821-22-006-10-002101
CONN SPRING PISTON 6POS PCB
811-22-041-30-001101
CONN SPRING PISTON 41POS SMD

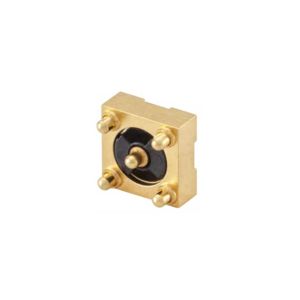

99CI106-030L5
CONN SPRING MOD MALE 5POS SMD

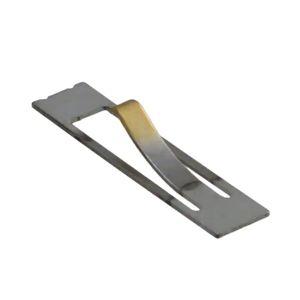

709155001610004
CONN SPRING BATTERY 1POS SMD

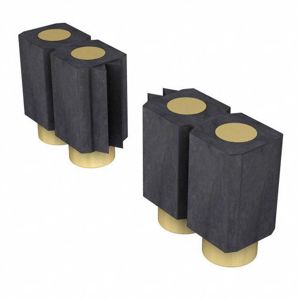

800-10-008-30-507101
CONN SPRING TARGET 8POS SMD

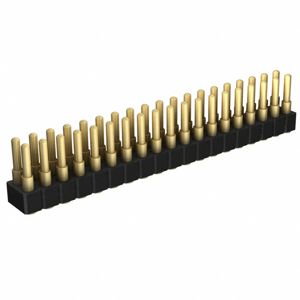

814-22-038-30-001101
CONN SPRING PISTON 38POS SMD
