Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

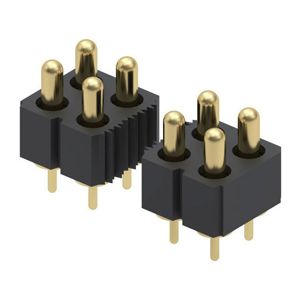

823-22-038-10-003101
CONN SPRING PISTON 38POS PCB

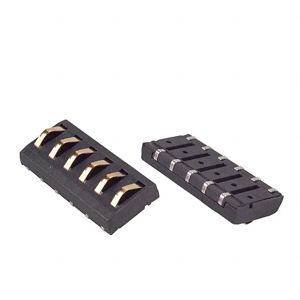

70ADJ-6-ML0G
CONN SPRING MOD MALE 6POS SMD

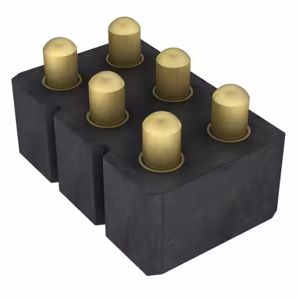

813-SS-006-30-683101-CLIP
CONN SPRING PISTON 6POS SMD, HIG

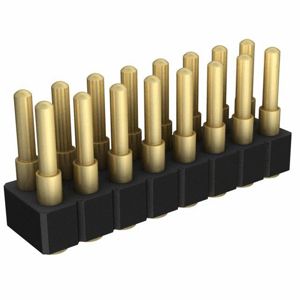

814-22-016-30-001101
CONN SPRING PISTON 16POS SMD

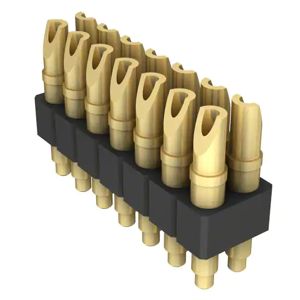

826-22-014-00-001000
CONN SPRING PISTON 14POS SLD PCB

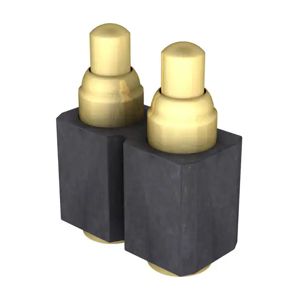

821-S1-002-30-015191
CONN SPRING PISTON 2POS SMD

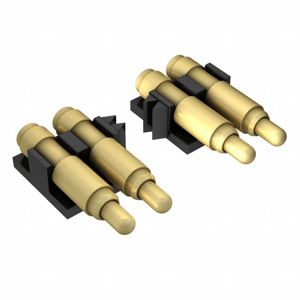

8PM-11-0008-02-131
CONN SPRING PISTON 8POS R/A SMD

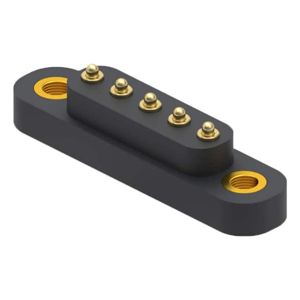

858-22-005-80-011101
CONN SPRING PISTON 5POS PCB
811-S1-045-10-015101
CONN SPRING PISTON 45POS PCB

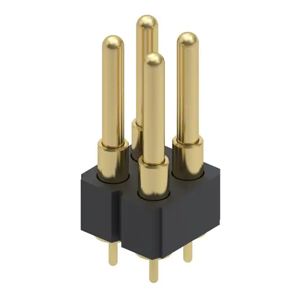

818-22-004-10-009101
CONN SPRING PISTON 4POS PCB

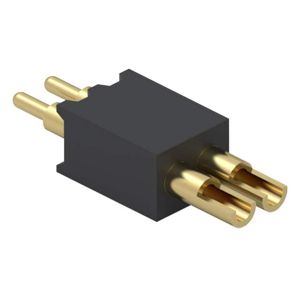

854-22-002-10-003101
CONN SPRING PISTON 2POS SLD PCB

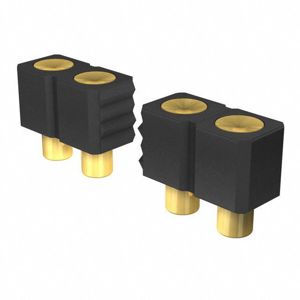

319-10-105-30-008000
CONN SPRING TARGET 5POS SMD

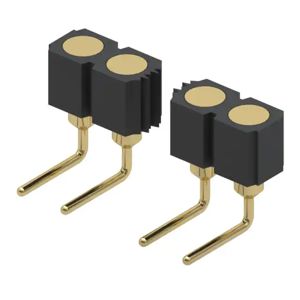

399-10-119-10-008000
CONN SPRING TARGET 19POS R/A PCB

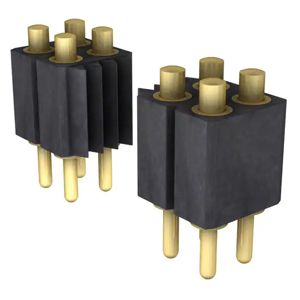

813-S1-034-10-017101
CONN SPRING PISTON 34POS PCB
821-22-023-10-000101
CONN SPRING PISTON 23POS PCB

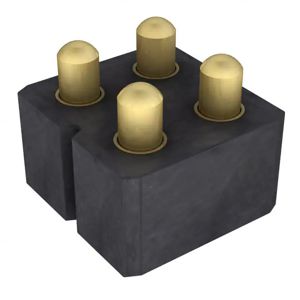

813-S1-004-30-016191
CONN SPRING PISTON 4POS SMD

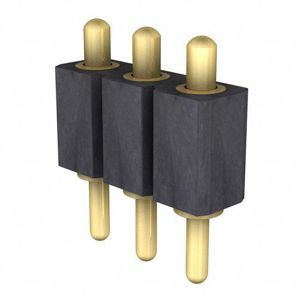

811-S1-003-10-017101
CONN SPRING PISTON 3POS PCB
813-SS-018-30-005101
CONN SPRING PISTON 18POS SMD

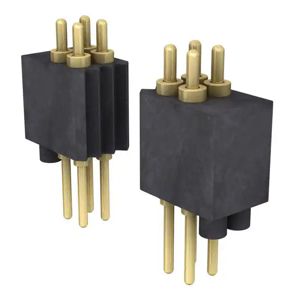

855-22-040-10-001101
CONN SPRING PISTON 40POS PCB

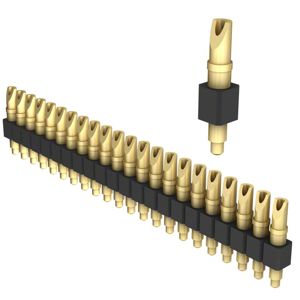

824-22-022-00-001000
CONN SPRING PISTON 22POS SLD PCB
