Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

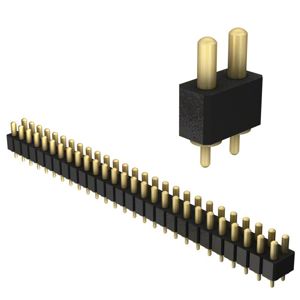

823-22-054-10-004101
CONN SPRING PISTON 54POS PCB
811-SS-007-30-008101
CONN SPRING PISTON 7POS SMD

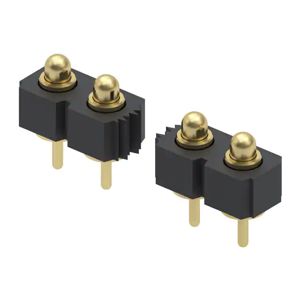

821-22-021-10-000101
CONN SPRING PISTON 21POS PCB
814-22-006-30-006101
CONN SPRING PISTON 6POS SMD
811-S1-054-10-017101
CONN SPRING PISTON 54POS PCB

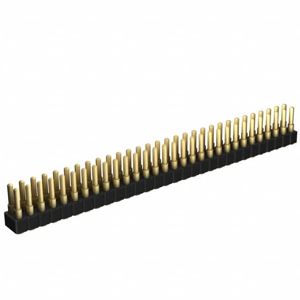

814-22-060-30-001101
CONN SPRING PISTON 60POS SMD

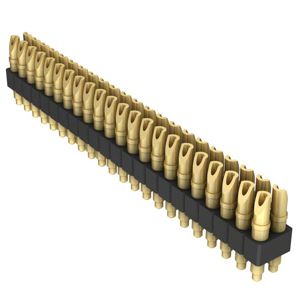

826-22-044-00-001000
CONN SPRING PISTON 44POS SLD PCB

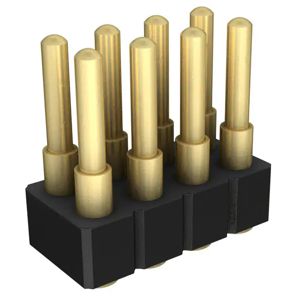

814-22-008-30-002101
CONN SPRING PISTON 8POS SMD

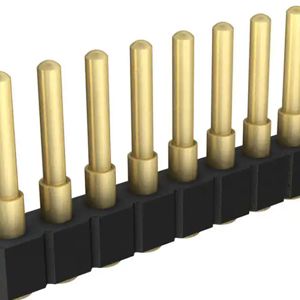

812-22-029-30-002101
CONN SPRING PISTON 29POS SMD

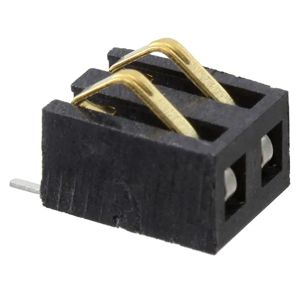

SIB-102-02-F-S-LC
CONN SPRING MOD 2POS SMD
813-22-064-30-002101
CONN SPRING PISTON 64POS SMD

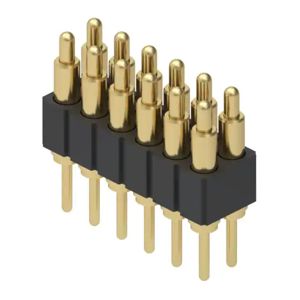

838-22-012-10-001101
CONN SPRING PISTON 12POS PCB

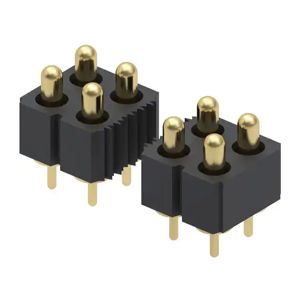

823-22-018-10-002101
CONN SPRING PISTON 18POS PCB

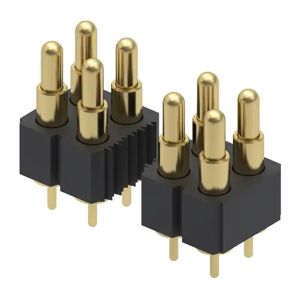

818-22-072-10-002101
CONN SPRING PISTON 72POS PCB

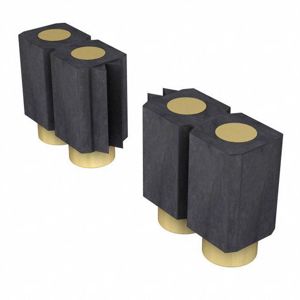

800-10-005-30-507101
CONN SPRING TARGET 5POS SMD

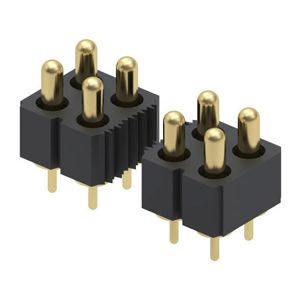

823-22-026-10-003101
CONN SPRING PISTON 26POS PCB

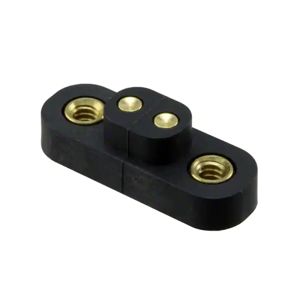

858-10-002-30-012000
CONN SPRING TARGET 2POS SMD

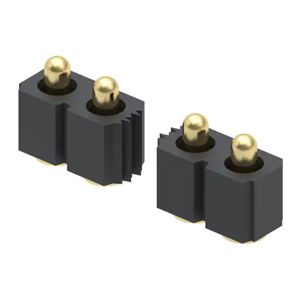

811-22-045-30-001101
CONN SPRING PISTON 45POS SMD

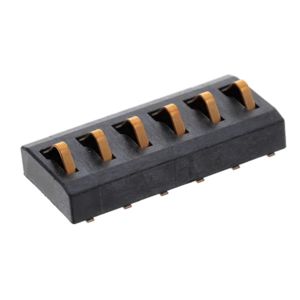

009155006401006
CONN SPRING BATTERY 6POS SMD

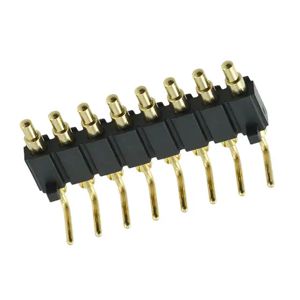

829-22-008-20-001101
CONN SPRING PISTON 8POS R/A PCB
