Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
811-SS-010-30-023101
CONN SPRING PISTON 10POS SMD
811-S1-009-30-016101
CONN SPRING PISTON 9POS SMD
811-SS-005-30-022101
CONN SPRING PISTON 5POS SMD

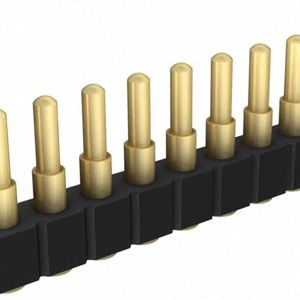

812-22-027-30-004101
CONN SPRING PISTON 27POS SMD

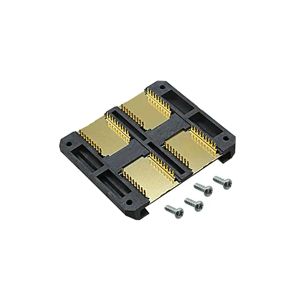

2204740-1
CONN SPRING SLIDING BUS 2POS PCB
821-22-027-10-000101
CONN SPRING PISTON 27POS PCB
813-S1-010-30-016191
CONN SPRING PISTON 10POS SMD

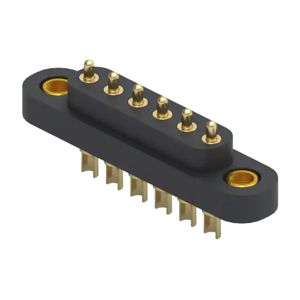

868-22-006-00-011101
CONN SPRING PISTON 6POS SLD PCB

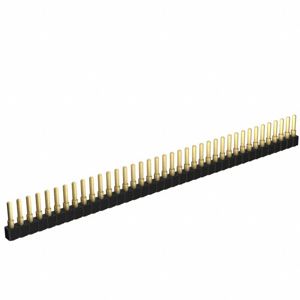

812-22-038-30-000101
CONN SPRING PISTON 38POS SMD
811-S1-060-10-016101
CONN SPRING PISTON 60POS PCB

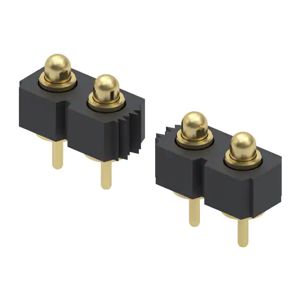

821-22-062-10-000101
CONN SPRING PISTON 62POS PCB

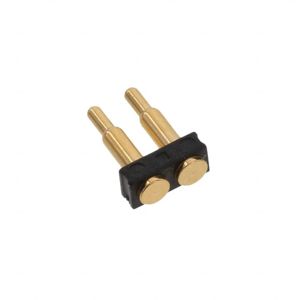

PH2-3B-02-MVF-5375
CONN SPRING PISTON 2POS SMD
811-S1-024-10-016101
CONN SPRING PISTON 24POS PCB
811-S1-029-10-014101
CONN SPRING PISTON 29POS PCB

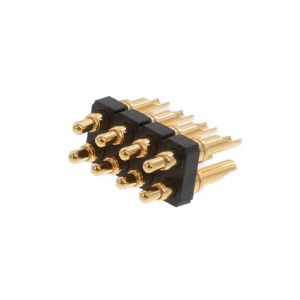

PH2-3B-08-MVS-4360
CONN SPRING PISTON 8POS SLD PCB

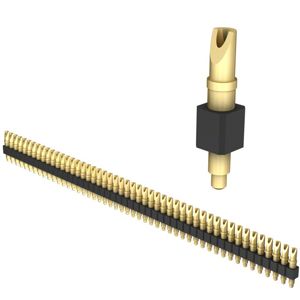

824-22-049-00-001000
CONN SPRING PISTON 49POS SLD PCB

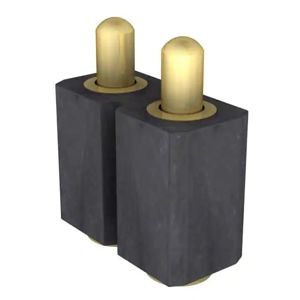

811-SS-002-30-677101-CLIP
CONN SPRING PISTON 2POS SMD, HIG
813-SS-014-30-001101
CONN SPRING PISTON 14POS SMD

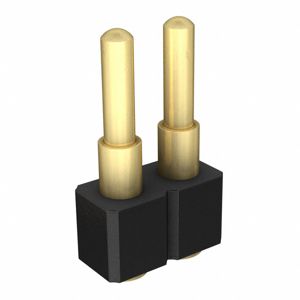

812-22-002-30-005101
CONN SPRING PISTON 2POS SMD
811-S1-006-30-017101
CONN SPRING PISTON 6POS SMD
