Transistors - IGBTs - Modules
Transistors - IGBTs - Modules

Category Introduction: Transistors - IGBTs - Modules

Definition:
Transistors - IGBTs (Insulated Gate Bipolar Transistors) - Modules represent a critical subcategory within Discrete Semiconductor Products, designed for high-efficiency power control in demanding applications. IGBT modules integrate multiple IGBTs, diodes, and thermal management components into a single compact package, offering superior switching performance, high voltage/current handling, and thermal stability compared to discrete IGBTs. These modules are engineered to bridge the gap between low-power MOSFETs and high-voltage bipolar transistors, making them indispensable in industrial automation, renewable energy systems, and electric vehicle (EV) powertrains.

Types of IGBT Modules:
1. Standard IGBT Modules Pre-configured for general-purpose motor drives and UPS systems.
2. High-Speed Switching Modules Optimized for frequency converters and induction heating.
3. Trench Gate/Field-Stop IGBTs Deliver lower VCE(sat) and switching losses for EV inverters.
4. Intelligent Power Modules (IPMs) Incorporate built-in gate drivers and protection circuits for simplified design.
5. SiC Hybrid Modules Combine silicon IGBTs with silicon carbide diodes for ultra-high efficiency.

Purchasing Recommendations:
- Voltage/Current Ratings: Match module specifications (e.g., 600V 1700V/50A 1200A) to your application s peak requirements.
- Thermal Design: Prioritize modules with low thermal resistance (Rth(j-c)) and compatible heatsinks for reliability.
- Certifications: Ensure compliance with industry standards (AEC-Q101 for automotive, UL/IEC for industrial).
- Supplier Evaluation: Opt for vendors offering simulation tools (e.g., SPICE models) and lifecycle support.

IGBT modules are pivotal in energy-conscious systems selecting the right variant ensures optimal performance, scalability, and total cost of ownership. Partner with trusted manufacturers to mitigate risks in high-stakes deployments.

Found 2956 items

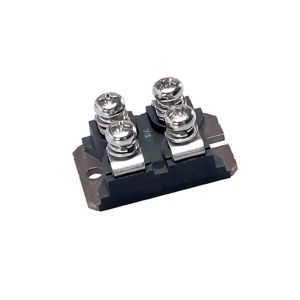

IXGN100N170

IGBT MOD 1700V 160A 735W SOT227B


FZ1400R33HE4BPSA1

IGBT MODULE DIODE HVB130-3

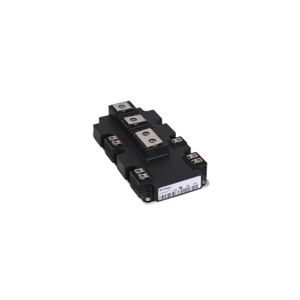

FF1200R12IE5PBPSA1

IGBT MOD 1200V 2400A 20MW

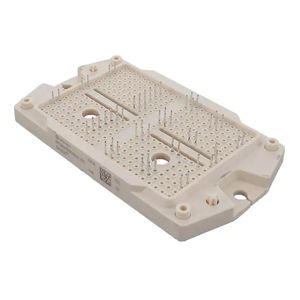

FF2MR12W3M1HB11BPSA1

LOW POWER EASY AG-EASY3B-3111

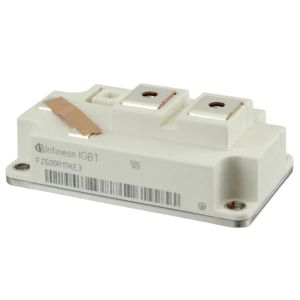

FZ600R17KE3HOSA1

IGBT MOD 1700V 840A 3150W


VS-GT140DA60U

IGBT MOD 600V 200A 652W SOT227


FF200R17KE3S4HOSA1

IGBT MODULE VCES 1200V 200A


FP50R12KT4B16BOSA1

IGBT MOD 1200V 100A 280W

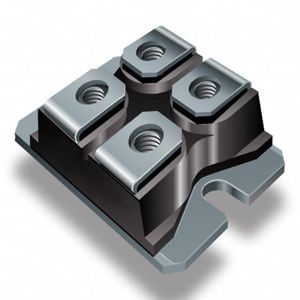

VS-GT100DA120UF

IGBT MOD 1200V 187A 890W SOT227


APT75GT120JU2

IGBT MOD 1200V 100A 416W SOT227

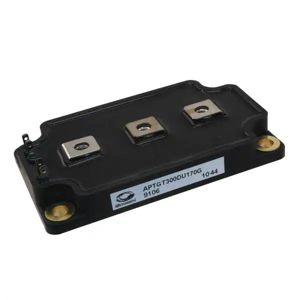

APTGT300DU170G

IGBT MODULE 1700V 400A 1660W SP6

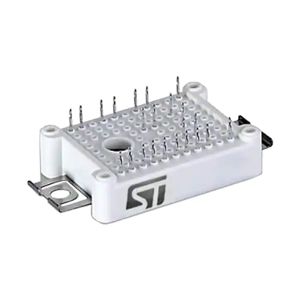

A1P25S12M3

IGBT MOD 1200V 25A 197W ACEPACK1


APTCV60HM45BC20T3G

IGBT MODULE 600V 50A 250W SP3

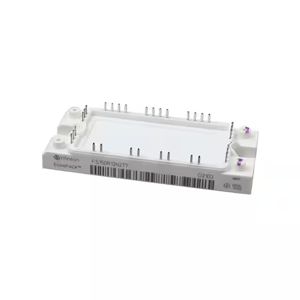

FS150R12N2T7BPSA1

LOW POWER ECONO AG-ECONO2-6

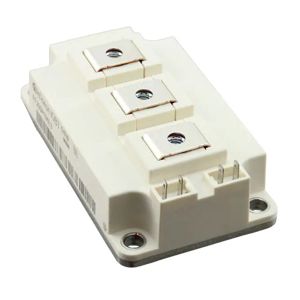

FF200R33KF2CNOSA1

IGBT MOD 3300V 330A 2200W

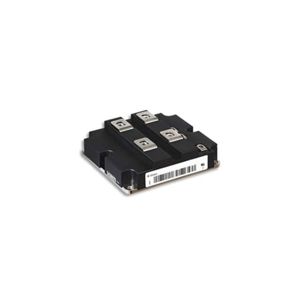

FF1200R17KP4B2NOSA2

IGBT MODULE 1700V 1200A


FF1200R12IE5BPSA1

IGBT MOD 1200V 2400A 20MW


FP10R12W1T4B3BOMA1

IGBT MOD 1200V 20A 105W

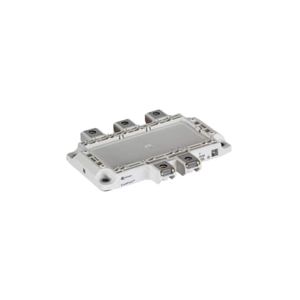

F3L400R12PT4B26BOSA1

IGBT MOD 1200V 600A 2150W


APT75GT120JRDQ3

IGBT MOD 1200V 97A 480W ISOTOP
