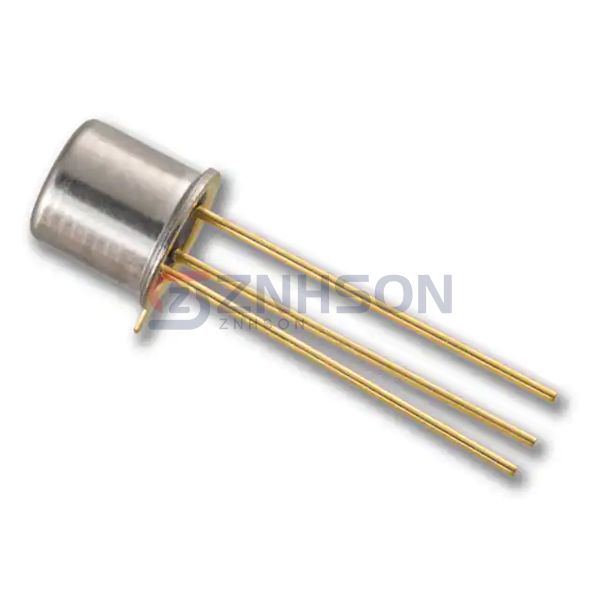

2N4392 TO-18 3L
Linear Integrated Systems, Inc.
Linear Integrated Systems, Inc.
LOW NOISE, N-CHANNEL JFET SWITCH
$5.93
Available to order
Reference Price (USD)
1+
$5.93000
500+
$5.8707
1000+
$5.8114
1500+
$5.7521
2000+
$5.6928
2500+
$5.6335
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Linear Integrated Systems, Inc.'s 2N4392 TO-18 3L redefines expectations for JFETs in the Discrete Semiconductor Products category. This dual-gate version offers unique flexibility for multiplier and mixer applications with exceptional isolation between gates. Key technical highlights include precisely matched channels, low feedback capacitance, and symmetrical transfer characteristics. The 2N4392 TO-18 3L dominates in spectrum analyzers, vector network analyzers, and advanced communication test equipment. Its superior performance in phase-sensitive detection circuits makes it invaluable in lock-in amplifiers and synchronous demodulators. The radiation-tolerant variant has been successfully deployed in space telescopes and particle physics experiments, demonstrating its exceptional reliability.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Voltage - Breakdown (V(BR)GSS): 40 V
- Drain to Source Voltage (Vdss): -
- Current - Drain (Idss) @ Vds (Vgs=0): 25 mA @ 20 V
- Current Drain (Id) - Max: -
- Voltage - Cutoff (VGS off) @ Id: 2 V @ 1 nA
- Input Capacitance (Ciss) (Max) @ Vds: 14pF @ 20V
- Resistance - RDS(On): 60 Ohms
- Power - Max: 1.8 W
- Operating Temperature: -55°C ~ 200°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-206AA, TO-18-3 Metal Can
- Supplier Device Package: TO-18-3
Related Products
Microchip Technology
MX2N4091
Toshiba Semiconductor and Storage

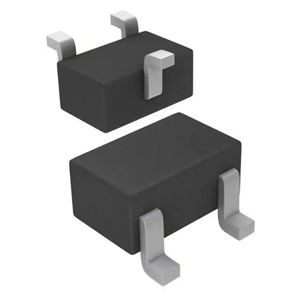

2SK879-GR(TE85L,F)
Linear Integrated Systems, Inc.

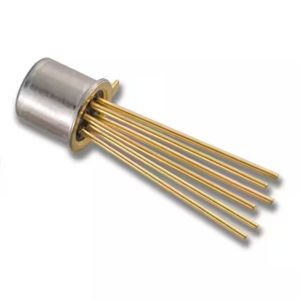

U403 TO-71 6L
Central Semiconductor Corp

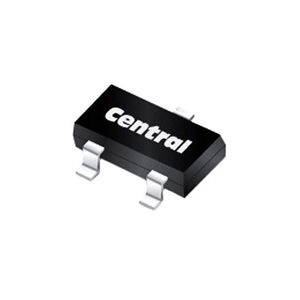

CMPF4393 TR PBFREE
Toshiba Semiconductor and Storage
2SK208-R(TE85L,F)
NTE Electronics, Inc

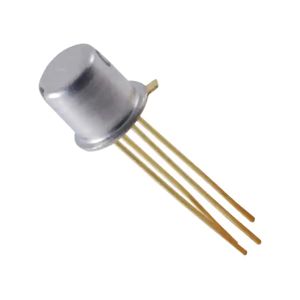

2N4221A
onsemi
MMBF4117
Linear Integrated Systems, Inc.

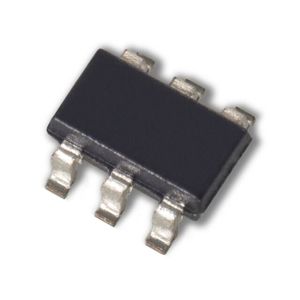

LS5911 SOT-23 6L
