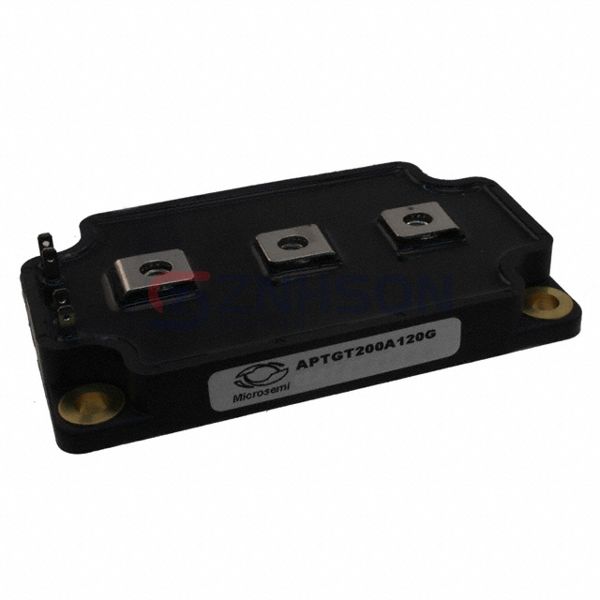

APTGT200A120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 280A 890W SP6
$237.71
Available to order
Reference Price (USD)
1+
$121.95000
10+
$113.97500
25+
$109.99000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT200A120G sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the APTGT200A120G in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Microchip Technology to deliver cutting-edge IGBT solutions with the APTGT200A120G power module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 280 A
- Power - Max: 890 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 200A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 14 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
