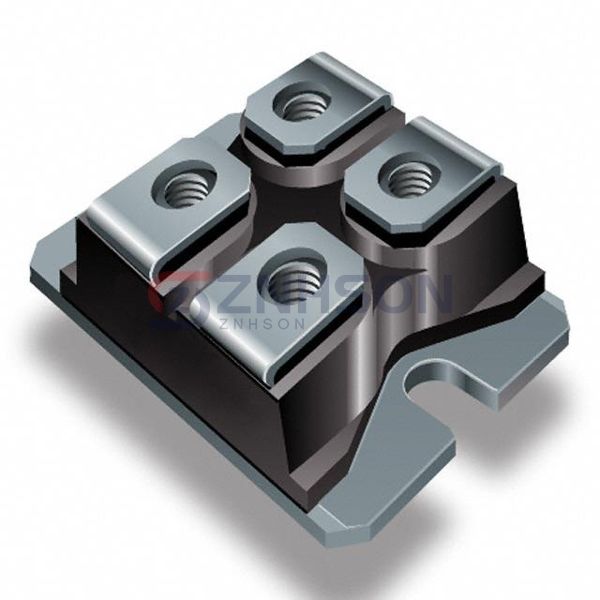

VS-GT180DA120U
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
IGBT MOD 1200V 281A 1087W SOT227
$47.59
Available to order
Reference Price (USD)
1+
$44.89000
10+
$41.88400
30+
$40.12800
100+
$36.36600
250+
$35.11200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the VS-GT180DA120U IGBT module by Vishay General Semiconductor - Diodes Division sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The VS-GT180DA120U finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Vishay General Semiconductor - Diodes Division continues to lead the IGBT module revolution with innovations like the VS-GT180DA120U.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 281 A
- Power - Max: 1087 W
- Vce(on) (Max) @ Vge, Ic: 2.05V @ 15V, 100A
- Current - Collector Cutoff (Max): 100 µA
- Input Capacitance (Cies) @ Vce: 9.35 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227
