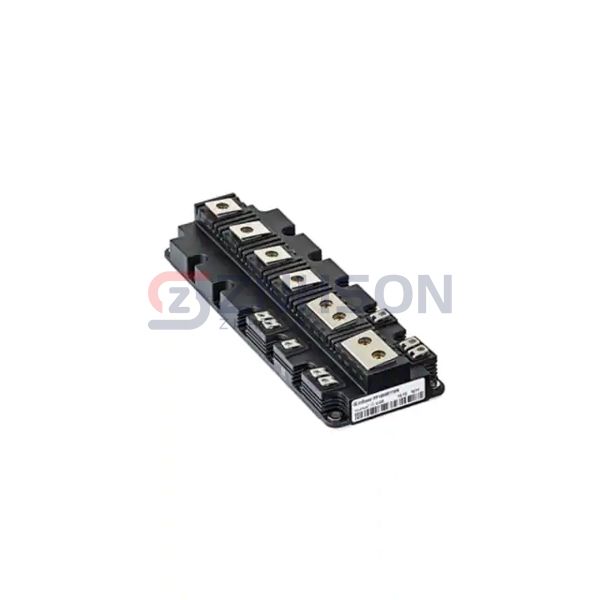

FF1500R12IE5BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 1500A 20MW
$1,848.80
Available to order
Reference Price (USD)
2+
$911.63500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's FF1500R12IE5BPSA1 stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the FF1500R12IE5BPSA1 enables higher power density in MRI gradient amplifiers. Choose Infineon Technologies for IGBT modules that push performance boundaries.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: 2 Independent
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 1500 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 1500A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 82 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
