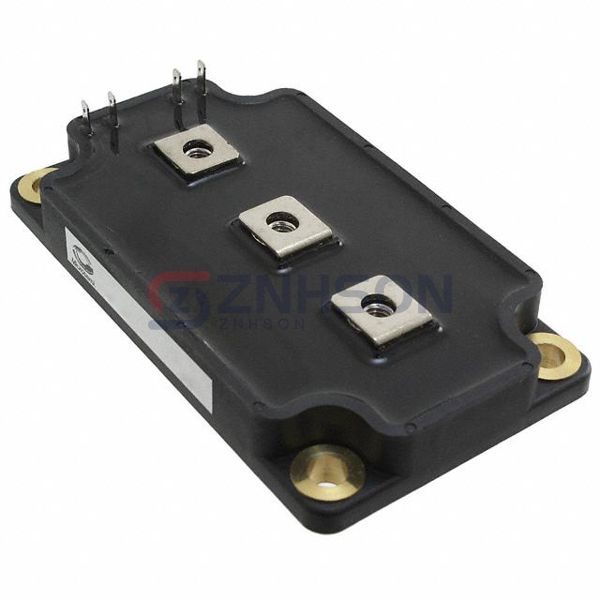

APTGT200DU120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 280A 890W SP6
$237.71
Available to order
Reference Price (USD)
1+
$136.02000
10+
$127.13200
25+
$122.68640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT200DU120G represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the APTGT200DU120G in industrial servo drives or medium-voltage frequency converters. Trust Microchip Technology's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 280 A
- Power - Max: 890 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 200A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 14 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
