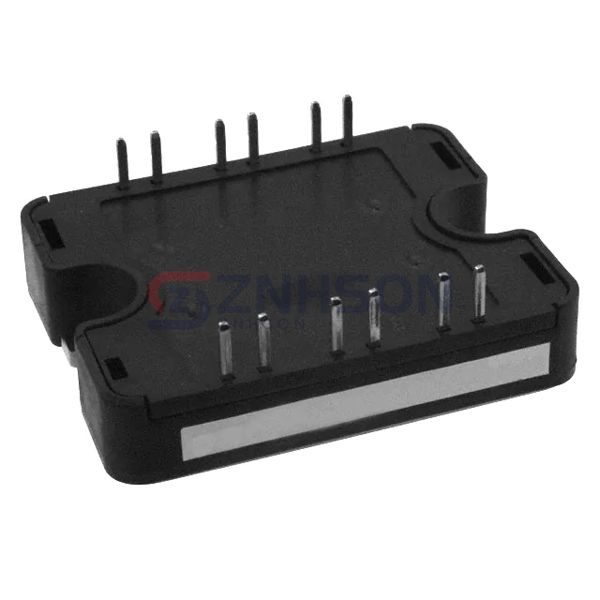

APTGT50SK170T1G
Microchip Technology
Microchip Technology
IGBT MODULE 1700V 75A 312W SP1
$62.51
Available to order
Reference Price (USD)
1+
$54.86000
10+
$51.29700
25+
$47.44240
100+
$44.47710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGT50SK170T1G from Microchip Technology exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the APTGT50SK170T1G in megawatt-level wind turbine converters. With Microchip Technology's proven track record, the APTGT50SK170T1G represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1700 V
- Current - Collector (Ic) (Max): 75 A
- Power - Max: 312 W
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 50A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 4.4 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP1
- Supplier Device Package: SP1
