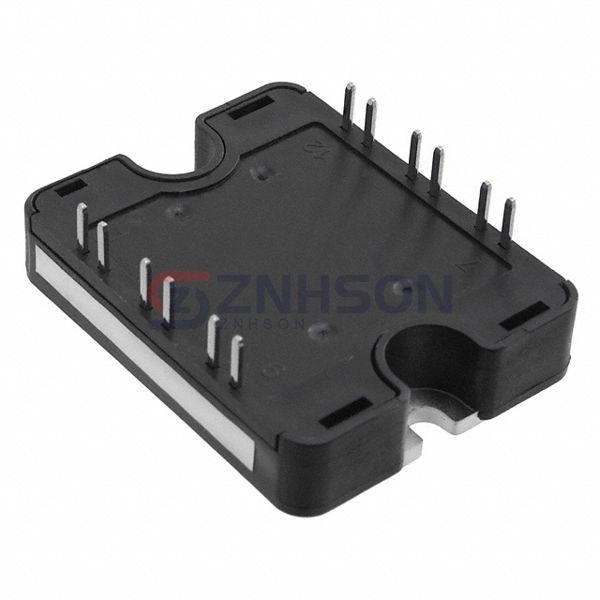

APTGT75DA60T1G
Microchip Technology
Microchip Technology
IGBT MODULE 600V 100A 250W SP1
$45.32
Available to order
Reference Price (USD)
100+
$27.36500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT75DA60T1G represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the APTGT75DA60T1G in industrial servo drives or medium-voltage frequency converters. Trust Microchip Technology's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 100 A
- Power - Max: 250 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 75A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 4.62 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP1
- Supplier Device Package: SP1
