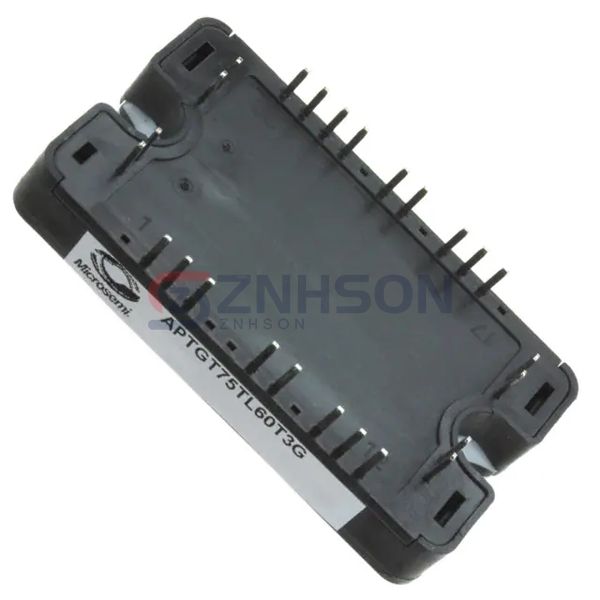

APTGT75TL60T3G
Microchip Technology
Microchip Technology
IGBT MODULE 600V 100A 250W SP3
$94.16
Available to order
Reference Price (USD)
1+
$70.54000
10+
$66.26100
25+
$63.26880
100+
$59.84890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT75TL60T3G sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the APTGT75TL60T3G in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Microchip Technology to deliver cutting-edge IGBT solutions with the APTGT75TL60T3G power module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Three Level Inverter
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 100 A
- Power - Max: 250 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 75A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 4.62 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
