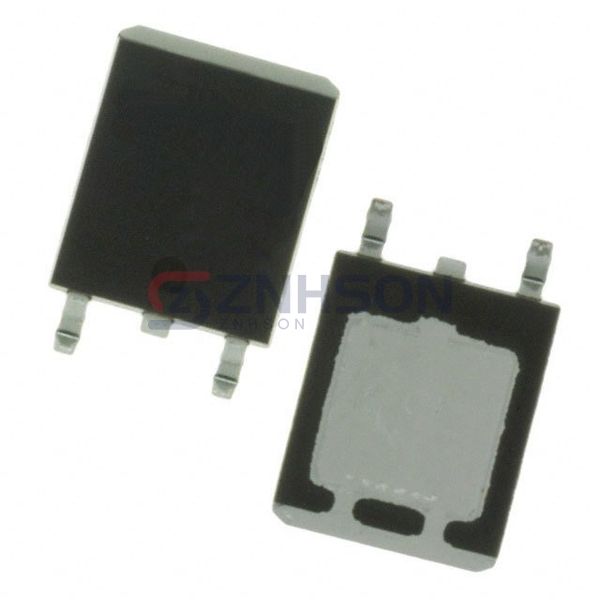

ATP301-TL-H
onsemi
onsemi
MOSFET P-CH 100V 28A ATPAK
$1.89
Available to order
Reference Price (USD)
3,000+
$0.87586
6,000+
$0.84527
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ATP301-TL-H by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The ATP301-TL-H stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 28A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 75mOhm @ 14A, 10V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 73 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4000 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 70W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ATPAK
- Package / Case: ATPAK (2 leads+tab)
