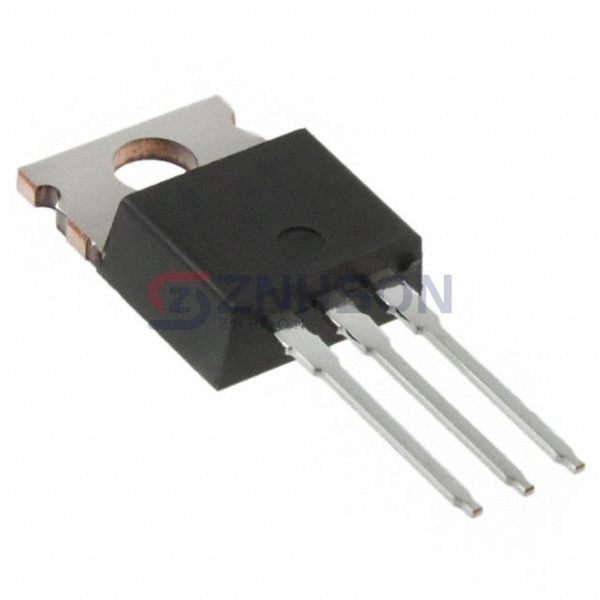

IRF9Z20PBF
Vishay Siliconix
Vishay Siliconix
MOSFET P-CH 50V 9.7A TO220AB
$2.00
Available to order
Reference Price (USD)
1+
$2.08000
50+
$1.68060
100+
$1.51250
500+
$1.17636
1,000+
$0.97470
2,500+
$0.90748
5,000+
$0.87387
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRF9Z20PBF from Vishay Siliconix, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the IRF9Z20PBF ensures reliable performance in demanding environments. Upgrade your circuit designs with Vishay Siliconix's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 50 V
- Current - Continuous Drain (Id) @ 25°C: 9.7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 280mOhm @ 5.6A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 26 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 480 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 40W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
Related Products
Infineon Technologies
IRFR5305TRLPBF
STMicroelectronics
STD4LN80K5
STMicroelectronics
STF12N120K5
Vishay Siliconix
SIR876BDP-T1-RE3
onsemi
NTBG080N120SC1
onsemi
FCH040N65S3-F155
Diodes Incorporated
DMN62D0LFD-7
Vishay Siliconix
SIHK055N60EF-T1GE3
Diodes Incorporated

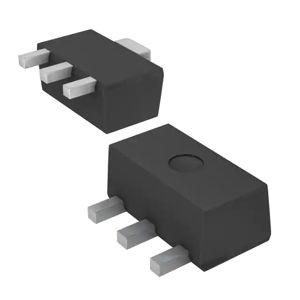

DMN30H14DLY-13
