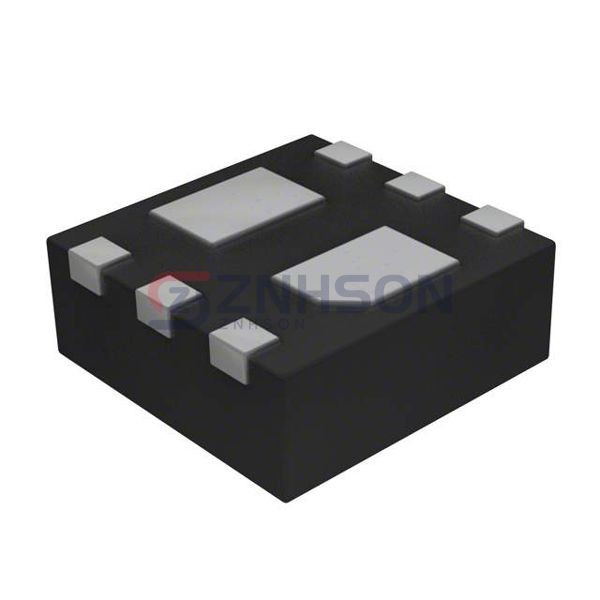

CSD15571Q2
Texas Instruments
Texas Instruments
MOSFET N-CH 20V 22A 6SON
$0.50
Available to order
Reference Price (USD)
3,000+
$0.15345
6,000+
$0.14355
15,000+
$0.13860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD15571Q2 by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD15571Q2 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 15mOhm @ 5A, 10V
- Vgs(th) (Max) @ Id: 1.9V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.7 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 419 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-SON (2x2)
- Package / Case: 6-WDFN Exposed Pad
Related Products
onsemi
FQU2N100TU
Vishay Siliconix

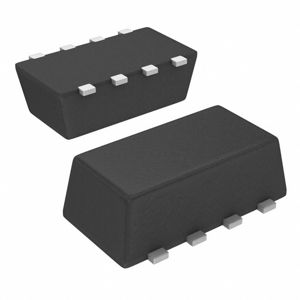

SI5468DC-T1-GE3
onsemi

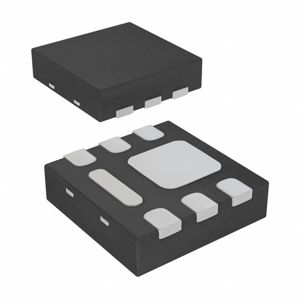

NTLUS3A40PZTAG
onsemi

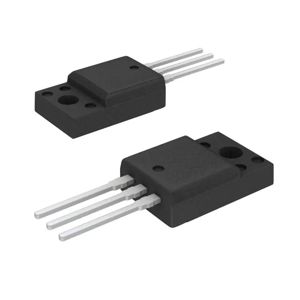

FCPF16N60
Alpha & Omega Semiconductor Inc.
AOD464
Vishay Siliconix

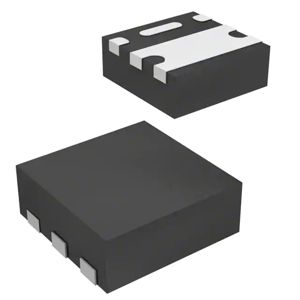

SIA468DJ-T1-GE3
Fairchild Semiconductor
FDP6670AL
onsemi

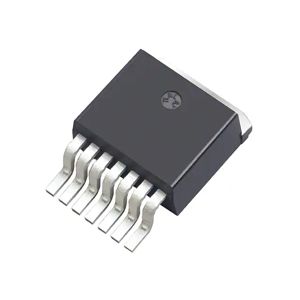

NTBG015N065SC1
Infineon Technologies

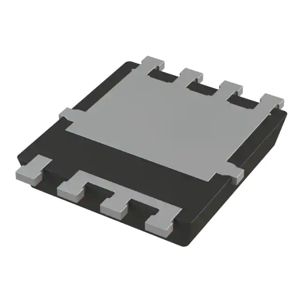

IAUC120N04S6N006ATMA1
