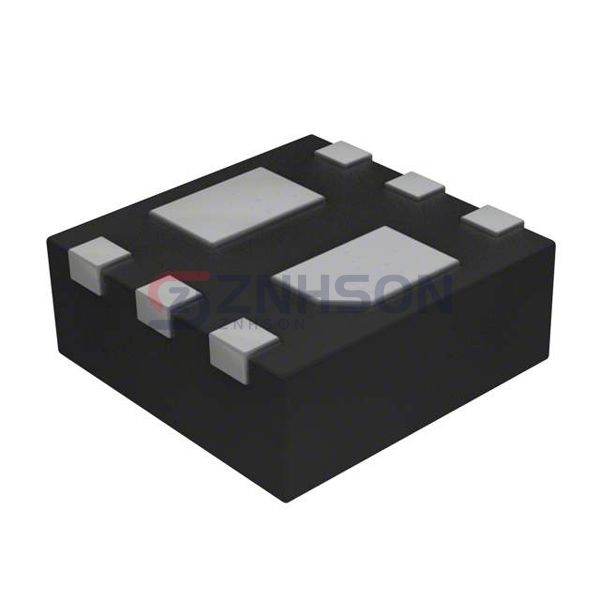

CSD17571Q2
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 22A 6SON
$0.53
Available to order
Reference Price (USD)
3,000+
$0.17360
6,000+
$0.16240
15,000+
$0.15680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD17571Q2 single MOSFET from Texas Instruments is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the CSD17571Q2 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 29mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.1 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 468 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-SON (2x2)
- Package / Case: 6-WDFN Exposed Pad
