CSD19536KTT
Texas Instruments
Texas Instruments
MOSFET N-CH 100V 200A DDPAK
$5.59
Available to order
Reference Price (USD)
500+
$2.89504
1,000+
$2.45485
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD19536KTT from Texas Instruments sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Texas Instruments's CSD19536KTT for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 200A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 2.4mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 3.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 153 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 12000 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 375W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DDPAK/TO-263-3
- Package / Case: TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Related Products
Infineon Technologies
IPP65R095C7XKSA1
Microchip Technology
APT5010LVFRG
Vishay Siliconix
SIHG22N60EF-GE3
Infineon Technologies
IPA60R099P7XKSA1
Toshiba Semiconductor and Storage
SSM6J212FE,LF
Renesas Electronics America Inc
NP75N04VUK-E1-AY
Microchip Technology
TP2635N3-G
Toshiba Semiconductor and Storage
TK560P65Y,RQ
IXYS

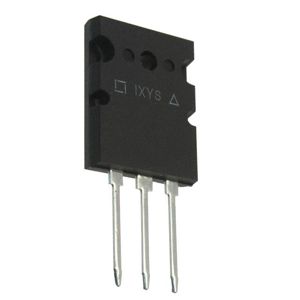

IXFK26N90
