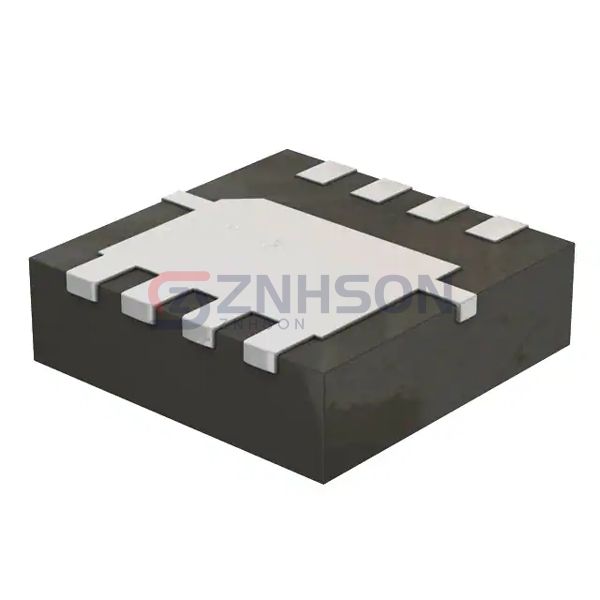

CSD25402Q3A
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 76A 8VSON
$0.98
Available to order
Reference Price (USD)
2,500+
$0.37265
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD25402Q3A by Texas Instruments is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the CSD25402Q3A is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 76A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 8.9mOhm @ 10A, 4.5V
- Vgs(th) (Max) @ Id: 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 9.7 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 1790 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta), 69W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (3x3.15)
- Package / Case: 8-PowerVDFN
Related Products
Rohm Semiconductor
R6011ENJTL
STMicroelectronics
STF14N80K5
Infineon Technologies
IPAN65R650CEXKSA1
Microchip Technology

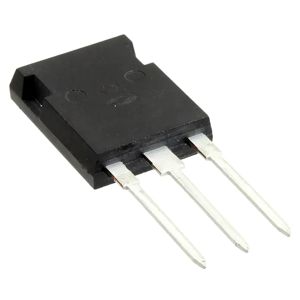

APT14M120B
Alpha & Omega Semiconductor Inc.

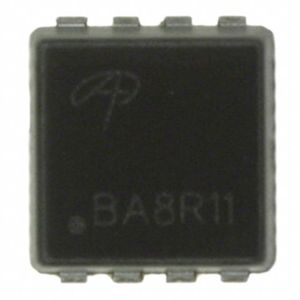

AON6588
IXYS

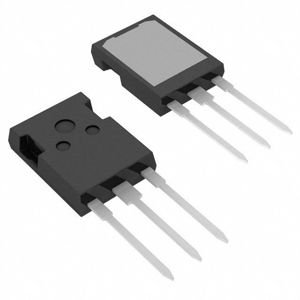

IXFX26N90
Infineon Technologies
IRFB4227PBF
Vishay Siliconix
SIHD2N80E-GE3
onsemi

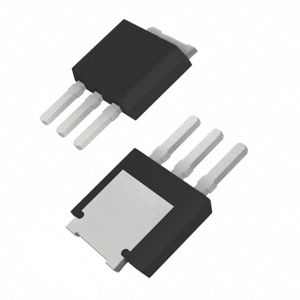

NTD4806N-35G

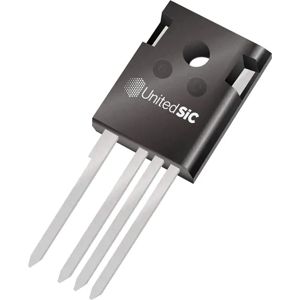

UnitedSiC
