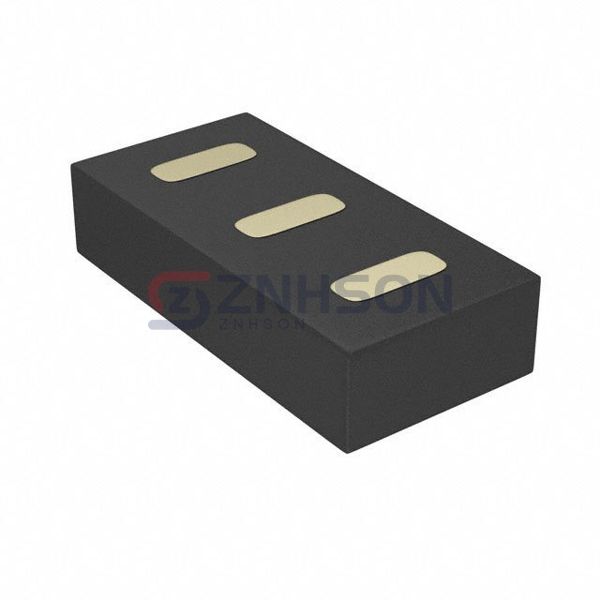

CSD25485F5T
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 5.3A 3PICOSTAR
$1.04
Available to order
Reference Price (USD)
1+
$1.04000
500+
$1.0296
1000+
$1.0192
1500+
$1.0088
2000+
$0.9984
2500+
$0.988
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD25485F5T from Texas Instruments sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Texas Instruments's CSD25485F5T for their critical applications.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 8V
- Rds On (Max) @ Id, Vgs: 35mOhm @ 900mA, 8V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.5 nC @ 4.5 V
- Vgs (Max): -12V
- Input Capacitance (Ciss) (Max) @ Vds: 533 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.4W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
Related Products
onsemi
NTHL082N65S3F
Infineon Technologies
BSC159N10LSFGATMA1
Nexperia USA Inc.
PH2925U,115
Texas Instruments
CSD18504Q5AT
Rohm Semiconductor
R6507ENXC7G
Texas Instruments
CSD18503Q5A
NXP USA Inc.
BUK954R4-40B127
Diodes Incorporated
ZXMN10A25GTA
Diodes Incorporated

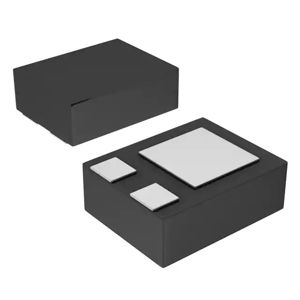

DMP21D6UFB4-7B
