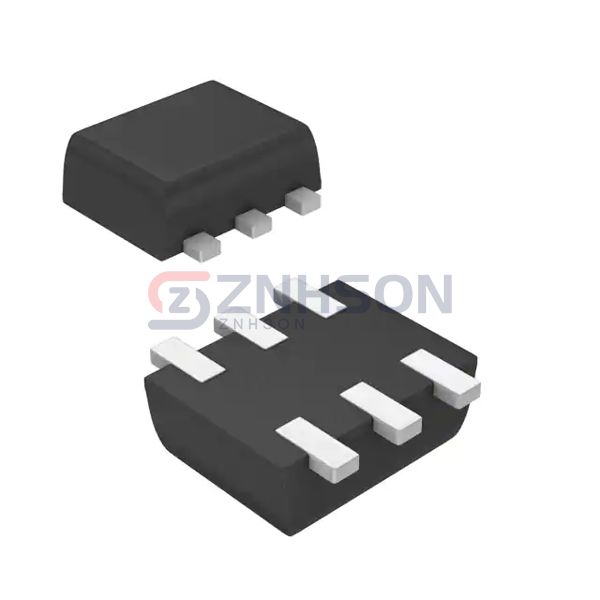

DDC142TH-7
Diodes Incorporated
Diodes Incorporated
TRANS 2NPN PREBIAS 0.15W SOT563
$0.00
Available to order
Reference Price (USD)
3,000+
$0.10408
6,000+
$0.09885
15,000+
$0.09101
30,000+
$0.08578
75,000+
$0.07968
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DDC142TH-7 from Diodes Incorporated is a high-performance Bipolar Junction Transistor (BJT) Array designed for precision applications. This pre-biased transistor array integrates multiple BJTs in a compact package, offering excellent thermal stability and consistent performance. Ideal for amplification and switching circuits, the DDC142TH-7 ensures low noise and high gain, making it a reliable choice for industrial and consumer electronics. Common applications include motor control, LED drivers, and audio amplifiers. With robust construction and advanced manufacturing techniques, Diodes Incorporated's DDC142TH-7 delivers unmatched reliability in demanding environments.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 470Ohms
- Resistor - Emitter Base (R2): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 1mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): -
- Frequency - Transition: 200MHz
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
