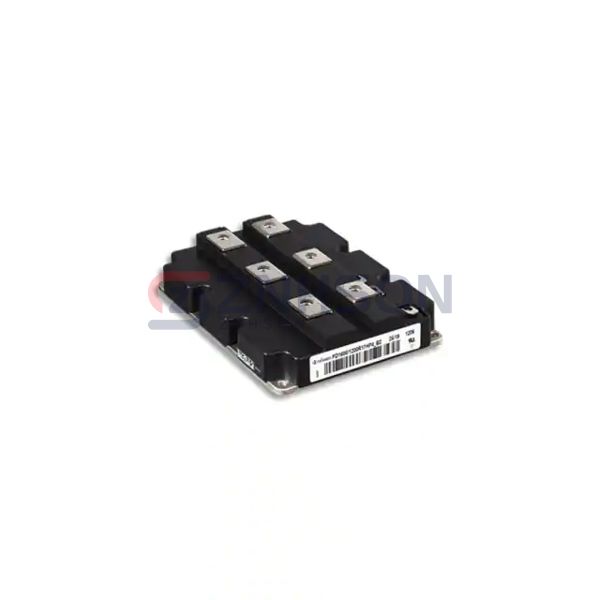

FD800R45KL3KB5NPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 4500V 800A 9000W
$3,241.68
Available to order
Reference Price (USD)
1+
$3,366.01000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Infineon Technologies's FD800R45KL3KB5NPSA1, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The FD800R45KL3KB5NPSA1 performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Infineon Technologies's FD800R45KL3KB5NPSA1, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Active
- IGBT Type: -
- Configuration: Single Chopper
- Voltage - Collector Emitter Breakdown (Max): 4500 V
- Current - Collector (Ic) (Max): 800 A
- Power - Max: 9000 W
- Vce(on) (Max) @ Vge, Ic: 2.85V @ 15V, 800A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 185 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -50°C ~ 125°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
