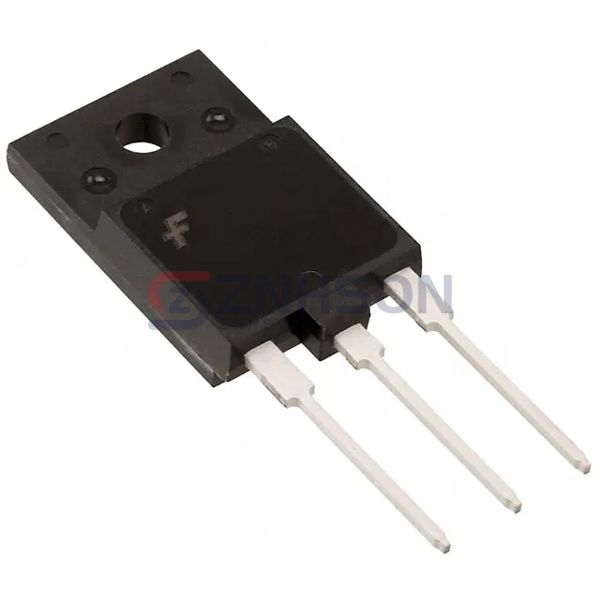

FGAF20N60SMD
onsemi
onsemi
IGBT FIELD STOP 600V 40A TO3PF
$3.78
Available to order
Reference Price (USD)
1+
$3.97000
10+
$3.56100
360+
$2.76806
720+
$2.48378
1,080+
$2.09475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the FGAF20N60SMD Single IGBT transistor from onsemi. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the FGAF20N60SMD delivers consistent and reliable operation. Trust onsemi's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 20A
- Power - Max: 75 W
- Switching Energy: 452µJ (on), 141µJ (off)
- Input Type: Standard
- Gate Charge: 64 nC
- Td (on/off) @ 25°C: 12ns/91ns
- Test Condition: 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 26.7 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
