FGAF40S65AQ
onsemi
onsemi
650V 40A FS4 SA IGBT
$4.02
Available to order
Reference Price (USD)
1+
$3.56000
30+
$2.49033
120+
$2.13442
510+
$1.71941
1,020+
$1.57712
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGAF40S65AQ by onsemi is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With onsemi's reputation for quality, the FGAF40S65AQ is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 40A
- Power - Max: 94 W
- Switching Energy: 132µJ (on), 62µJ (off)
- Input Type: Standard
- Gate Charge: 75 nC
- Td (on/off) @ 25°C: 17.8ns/81.6ns
- Test Condition: 400V, 10A, 6Ohm, 15V
- Reverse Recovery Time (trr): 274 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole

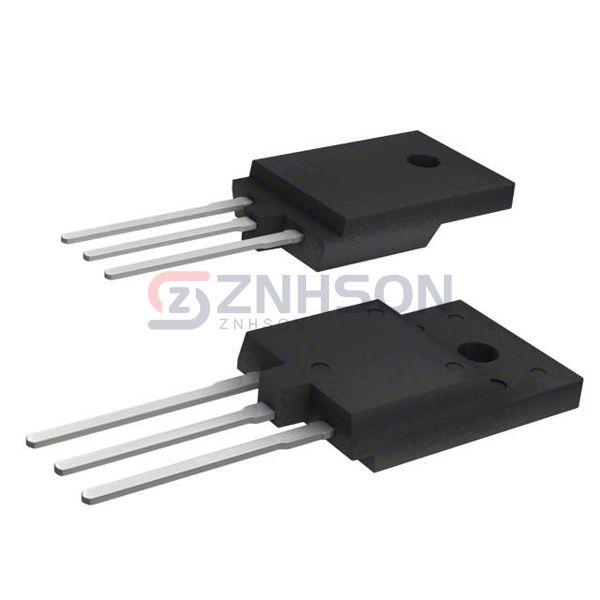

- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF-3
