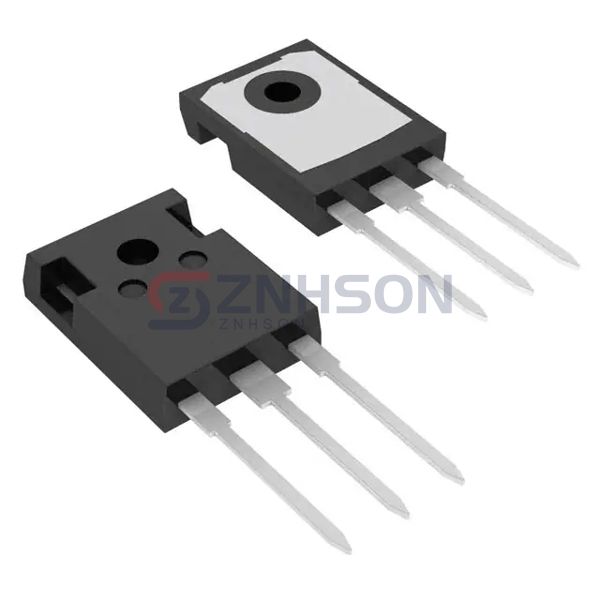

FGH40N60SMD
onsemi
onsemi
IGBT FIELD STOP 600V 80A TO247-3
$6.08
Available to order
Reference Price (USD)
1+
$5.48000
10+
$4.94300
450+
$3.88002
900+
$3.49920
1,350+
$2.97804
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH40N60SMD from onsemi is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose FGH40N60SMD for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 40A
- Power - Max: 349 W
- Switching Energy: 870µJ (on), 260µJ (off)
- Input Type: Standard
- Gate Charge: 119 nC
- Td (on/off) @ 25°C: 12ns/92ns
- Test Condition: 400V, 40A, 6Ohm, 15V
- Reverse Recovery Time (trr): 36 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
