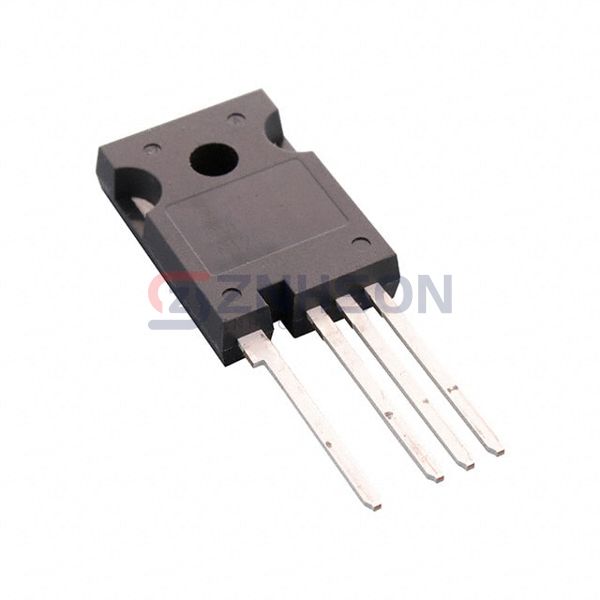

FGH75T65SQDNL4
onsemi
onsemi
650V/75 FAST IGBT FSIII T
$10.41
Available to order
Reference Price (USD)
1+
$9.49000
10+
$8.62600
450+
$5.49840
900+
$4.90748
1,350+
$4.80320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH75T65SQDNL4 by onsemi is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With onsemi's reputation for quality, the FGH75T65SQDNL4 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 200 A
- Current - Collector Pulsed (Icm): 200 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
- Power - Max: 375 W
- Switching Energy: 1.25mJ (on), 1.26mJ (off)
- Input Type: Standard
- Gate Charge: 152 nC
- Td (on/off) @ 25°C: 44ns/208ns
- Test Condition: 400V, 75A, 10Ohm, 15V
- Reverse Recovery Time (trr): 134 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: TO-247-4L
