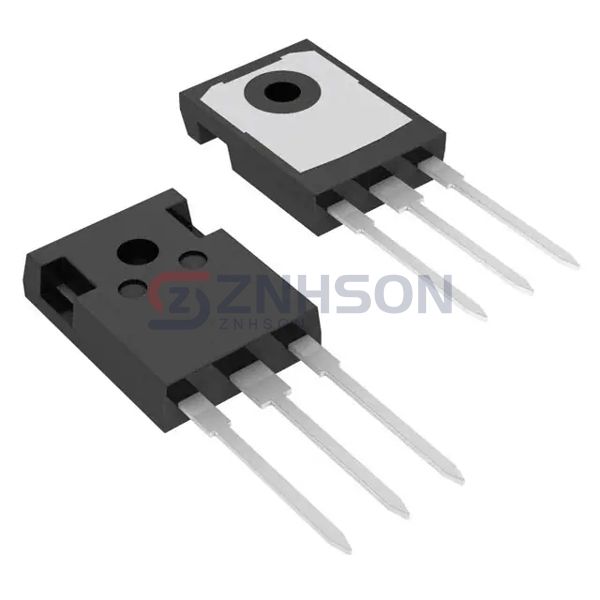

FGH75T65UPD-F085
onsemi
onsemi
IGBT 650V 150A 375W TO-247AB
$6.08
Available to order
Reference Price (USD)
450+
$5.27567
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FGH75T65UPD-F085 Single IGBT transistor by onsemi, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the FGH75T65UPD-F085 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the FGH75T65UPD-F085 for unmatched power control.
Specifications
- Product Status: Not For New Designs
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 150 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 75A
- Power - Max: 375 W
- Switching Energy: 2.85mJ (on), 1.2mJ (off)
- Input Type: Standard
- Gate Charge: 578 nC
- Td (on/off) @ 25°C: 32ns/166ns
- Test Condition: 400V, 75A, 3Ohm, 15V
- Reverse Recovery Time (trr): 85 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
