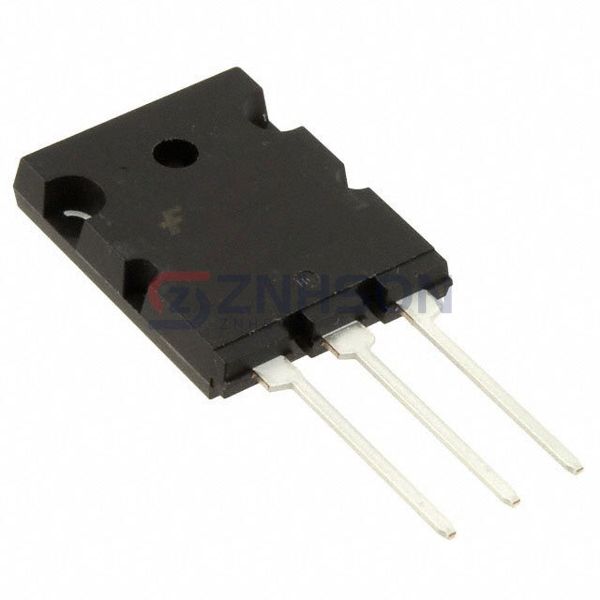

FGL40N120ANTU
Fairchild Semiconductor
Fairchild Semiconductor
INSULATED GATE BIPOLAR TRANSISTO
$8.92
Available to order
Reference Price (USD)
1+
$12.65000
10+
$11.47400
100+
$9.57460
500+
$8.39428
1,000+
$7.36791
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGL40N120ANTU from Fairchild Semiconductor is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose FGL40N120ANTU for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 64 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 40A
- Power - Max: 500 W
- Switching Energy: 2.3mJ (on), 1.1mJ (off)
- Input Type: Standard
- Gate Charge: 220 nC
- Td (on/off) @ 25°C: 15ns/110ns
- Test Condition: 600V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: HPM F2
