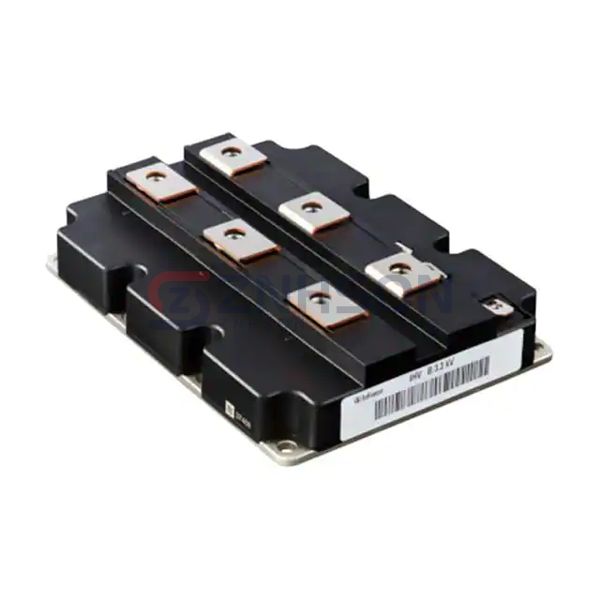

FZ1800R45HL4BPSA1
Infineon Technologies
Infineon Technologies
IHV IHM T XHP 3 3-6 5K AG-IHVB19
$4,676.88
Available to order
Reference Price (USD)
1+
$4676.88000
500+
$4630.1112
1000+
$4583.3424
1500+
$4536.5736
2000+
$4489.8048
2500+
$4443.036
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FZ1800R45HL4BPSA1 from Infineon Technologies exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the FZ1800R45HL4BPSA1 in megawatt-level wind turbine converters. With Infineon Technologies's proven track record, the FZ1800R45HL4BPSA1 represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: 3 Independent
- Voltage - Collector Emitter Breakdown (Max): 4500 V
- Current - Collector (Ic) (Max): 1.8 kA
- Power - Max: 4000 W
- Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 1.8kA
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 297 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: AG-IHVB190
