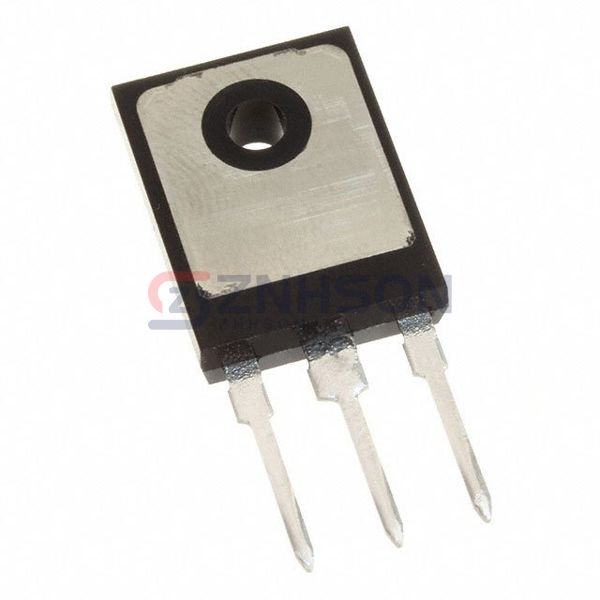

IKW50N65EH5XKSA1
Infineon Technologies
Infineon Technologies
IGBT TRENCH 650V 80A TO247-3
$6.12
Available to order
Reference Price (USD)
1+
$6.26000
10+
$5.66300
240+
$4.71242
720+
$4.07108
1,200+
$3.49613
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IKW50N65EH5XKSA1 Single IGBT transistor by Infineon Technologies, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the IKW50N65EH5XKSA1 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the IKW50N65EH5XKSA1 for unmatched power control.
Specifications
- Product Status: Active
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 200 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 50A
- Power - Max: 275 W
- Switching Energy: 1.5mJ (on), 500µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 25ns/172ns
- Test Condition: 400V, 50A, 12Ohm, 15V
- Reverse Recovery Time (trr): 81 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3
