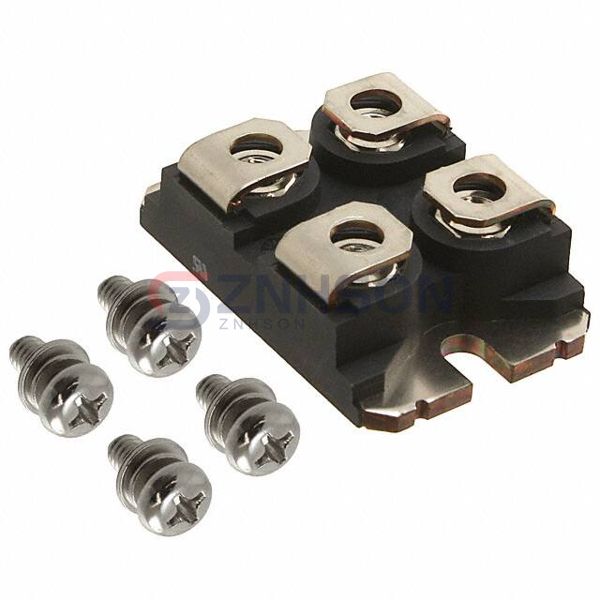

IXGN120N60A3D1
IXYS
IXYS
IGBT MOD 600V 200A 595W SOT227B
$0.00
Available to order
Reference Price (USD)
1+
$29.46000
10+
$27.25100
30+
$25.04100
100+
$23.27340
250+
$21.35852
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IXYS's IXGN120N60A3D1 sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the IXGN120N60A3D1 in your traction inverters or high-energy physics experiments for unparalleled performance. Trust IXYS to deliver cutting-edge IGBT solutions with the IXGN120N60A3D1 power module.
Specifications
- Product Status: Obsolete
- IGBT Type: PT
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 595 W
- Vce(on) (Max) @ Vge, Ic: 1.35V @ 15V, 100A
- Current - Collector Cutoff (Max): 650 µA
- Input Capacitance (Cies) @ Vce: 14.8 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227B
