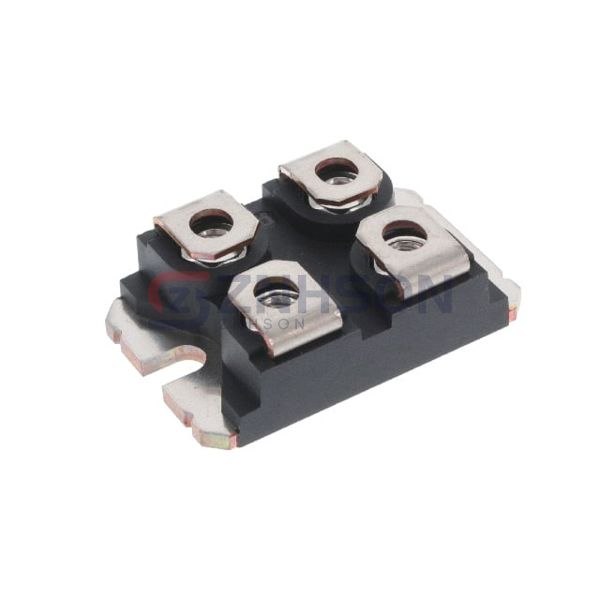

MSC70SM120JCU3
Microchip Technology
Microchip Technology
SICFET N-CH 1.2KV 89A SOT227
$69.81
Available to order
Reference Price (USD)
1+
$69.81000
500+
$69.1119
1000+
$68.4138
1500+
$67.7157
2000+
$67.0176
2500+
$66.3195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the MSC70SM120JCU3 single MOSFET from Microchip Technology. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Microchip Technology's MSC70SM120JCU3 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 89A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 31mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 232 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 3020 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 395W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227 (ISOTOP®)
- Package / Case: SOT-227-4, miniBLOC
