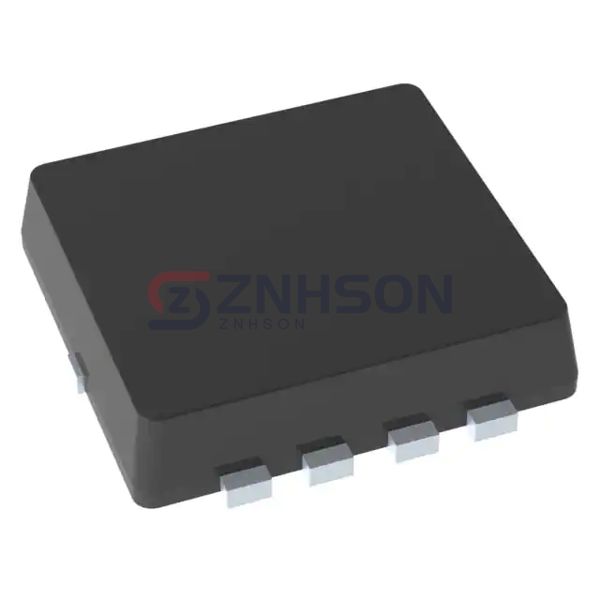

NVTFWS002N04CTAG
onsemi
onsemi
MOSFET N-CH 40V 27A/136A 8WDFN
$1.04
Available to order
Reference Price (USD)
1+
$1.04058
500+
$1.0301742
1000+
$1.0197684
1500+
$1.0093626
2000+
$0.9989568
2500+
$0.988551
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the NVTFWS002N04CTAG by onsemi, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the NVTFWS002N04CTAG is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 27A (Ta), 136A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.4mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 90µA
- Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2250 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 85W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-WDFN (3.3x3.3)
- Package / Case: 8-PowerWDFN
