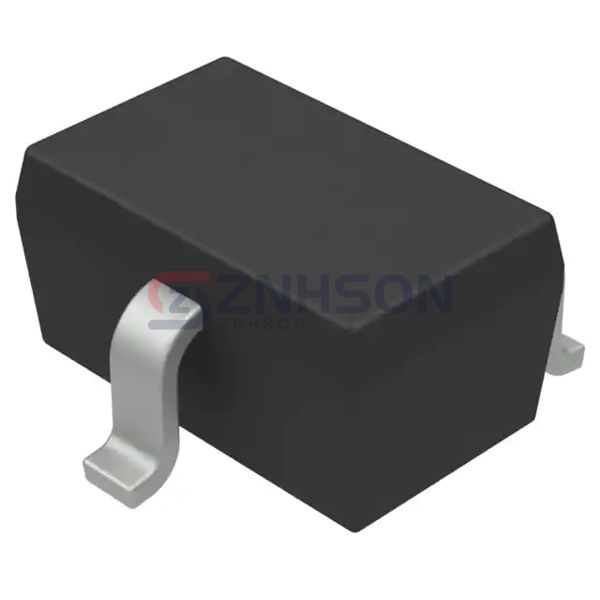

PDTB113ZUF
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS PNP 0.425W
$0.05
Available to order
Reference Price (USD)
10,000+
$0.04420
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PDTB113ZUF by Nexperia USA Inc. sets new benchmarks for single BJT transistors. Featuring moisture-resistant packaging (MSL-3 rated) and 8ns switching speed, it's the preferred choice for: Drone motor controllers Solar microinverters POS terminal printers Backed by Nexperia USA Inc.'s global technical support and 5-year warranty for peace of mind.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 1 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 140 MHz
- Power - Max: 300 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
Related Products
Nexperia USA Inc.
PDTB113ZT,215
Nexperia USA Inc.
PDTC144TT,215
Nexperia USA Inc.
PDTB123YQAZ
Rohm Semiconductor
DTA143ECAHZGT116
Infineon Technologies
BCR185E6327HTSA1
Toshiba Semiconductor and Storage

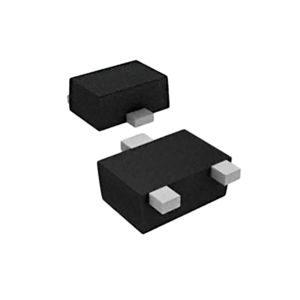

RN1103MFV,L3XHF(CT
Infineon Technologies

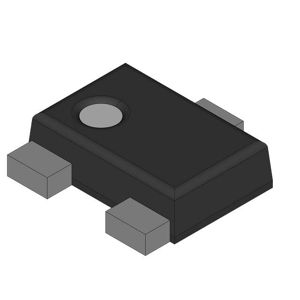

BCR129FE6327
Rohm Semiconductor

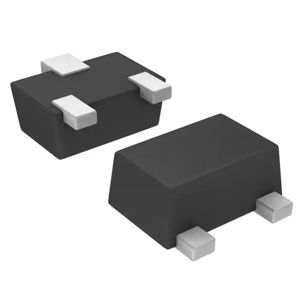

DTA014TMT2L
Toshiba Semiconductor and Storage

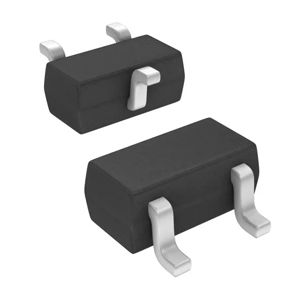

RN2102,LF(CT
