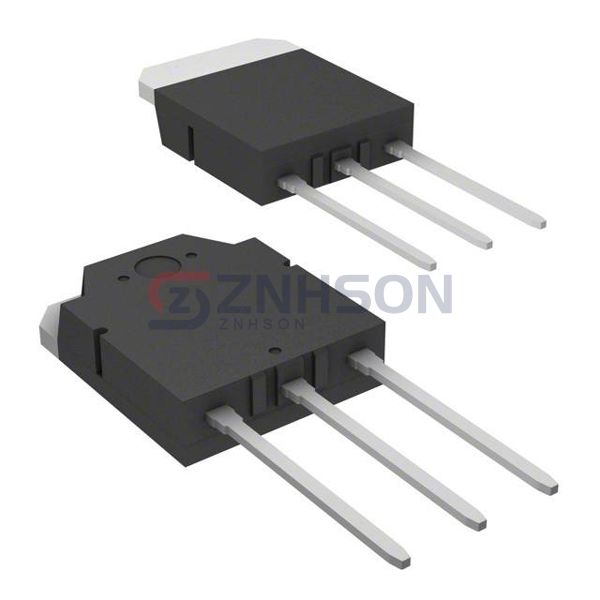

RJH1CV6DPK-00#T0
Renesas Electronics America Inc
Renesas Electronics America Inc
IGBT 1200V 60A 290W TO-3P
$5.77
Available to order
Reference Price (USD)
1+
$6.40000
10+
$5.71700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RJH1CV6DPK-00#T0 by Renesas Electronics America Inc is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Renesas Electronics America Inc's reputation for quality, the RJH1CV6DPK-00#T0 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): -
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 30A
- Power - Max: 290 W
- Switching Energy: 2.3mJ (on), 1.7mJ (off)
- Input Type: Standard
- Gate Charge: 105 nC
- Td (on/off) @ 25°C: 46ns/125ns
- Test Condition: 600V, 30A, 5Ohm, 15V
- Reverse Recovery Time (trr): 180 ns
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-3P
Related Products
Infineon Technologies
IRG7PH42U-EP
Infineon Technologies
IRGP4266PBF
Alpha & Omega Semiconductor Inc.
AOK40B60D1
IXYS
IXDH30N120D1
Rohm Semiconductor
RGT20TM65DGC9
Fairchild Semiconductor
FGPF30N30
Rohm Semiconductor
RGTV80TK65GVC11
Infineon Technologies
IKW30N65ET7XKSA1
Infineon Technologies

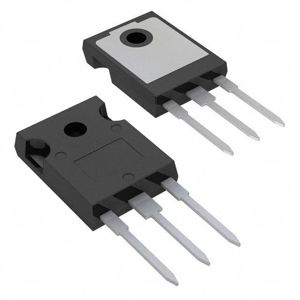

AIKW50N65DF5XKSA1

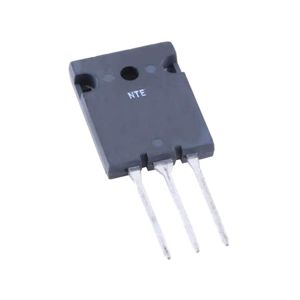

NTE Electronics, Inc
