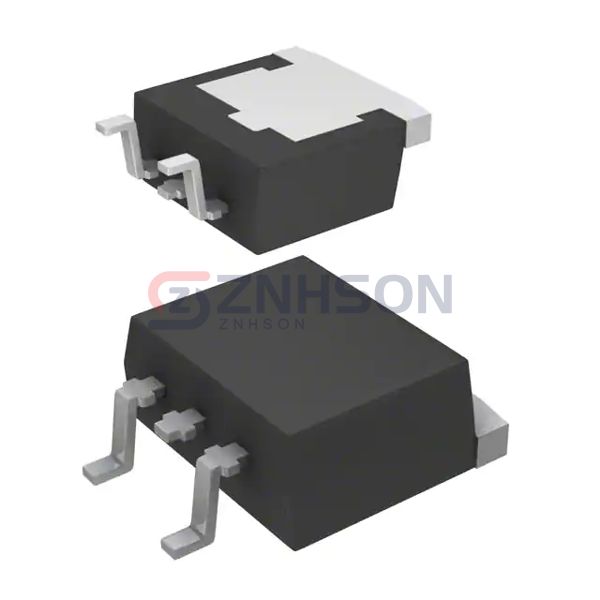

RJH60A83RDPE-00#J3
Renesas Electronics America Inc
Renesas Electronics America Inc
IGBT 600V 20A 52W LDPAK
$2.14
Available to order
Reference Price (USD)
1+
$2.14000
500+
$2.1186
1000+
$2.0972
1500+
$2.0758
2000+
$2.0544
2500+
$2.033
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RJH60A83RDPE-00#J3 Single IGBT transistor by Renesas Electronics America Inc is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The RJH60A83RDPE-00#J3 ensures precise power control and long-term stability. With Renesas Electronics America Inc's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate RJH60A83RDPE-00#J3 into your projects for superior results.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 20 A
- Current - Collector Pulsed (Icm): -
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 10A
- Power - Max: 52 W
- Switching Energy: 230µJ (on), 160µJ (off)
- Input Type: Standard
- Gate Charge: 19.7 nC
- Td (on/off) @ 25°C: 31ns/54ns
- Test Condition: 300V, 10A, 5Ohm, 15V
- Reverse Recovery Time (trr): 130 ns
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-83
- Supplier Device Package: LDPAK
