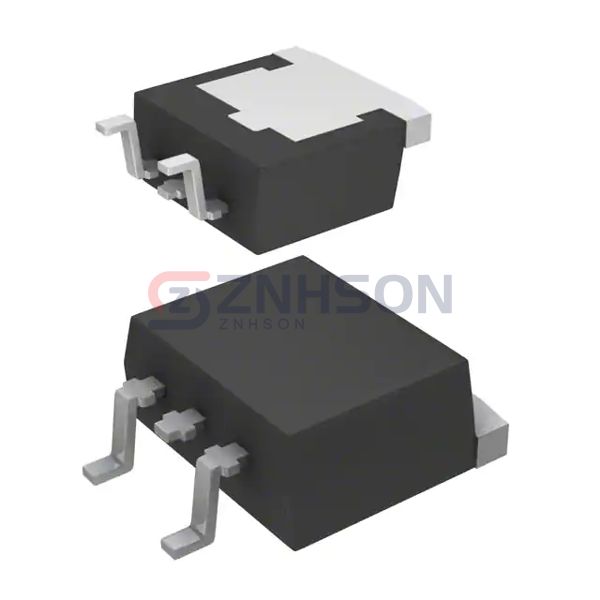

RJH60M1DPE-00#J3
Renesas Electronics America Inc
Renesas Electronics America Inc
IGBT 600V 16A 52W LDPAK
$2.14
Available to order
Reference Price (USD)
1,000+
$1.10199
2,000+
$1.02599
5,000+
$1.01332
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the RJH60M1DPE-00#J3 Single IGBT transistor from Renesas Electronics America Inc. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the RJH60M1DPE-00#J3 ensures precision and reliability. Renesas Electronics America Inc's cutting-edge technology guarantees a component that meets the highest industry standards. Choose RJH60M1DPE-00#J3 for efficient and durable power solutions.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 16 A
- Current - Collector Pulsed (Icm): -
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 8A
- Power - Max: 52 W
- Switching Energy: 80µJ (on), 90µJ (off)
- Input Type: Standard
- Gate Charge: 20.5 nC
- Td (on/off) @ 25°C: 30ns/55ns
- Test Condition: 300V, 8A, 5Ohm, 15V
- Reverse Recovery Time (trr): 100 ns
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-83
- Supplier Device Package: LDPAK
Related Products
STMicroelectronics
STGWA30HP65FB
Rohm Semiconductor
RGT8NS65DGC9
Fairchild Semiconductor
FGPF7N60RUFDTU
IXYS
IXGH24N170A
Infineon Technologies
IKW40N65ET7XKSA1
onsemi
FGA6560WDF
Microchip Technology
APT25GN120SG/TR
Infineon Technologies
SKB04N60ATMA1
Fairchild Semiconductor

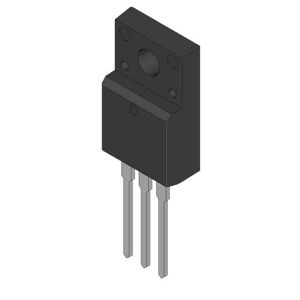

SGS13N60UFDTU
