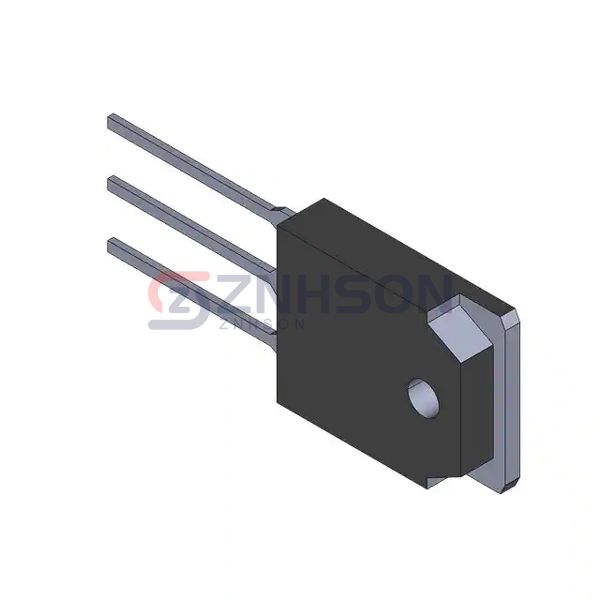

SGH15N120RUFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 24A, 1200V, N-CHANNEL
$2.88
Available to order
Reference Price (USD)
1+
$2.88000
500+
$2.8512
1000+
$2.8224
1500+
$2.7936
2000+
$2.7648
2500+
$2.736
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGH15N120RUFDTU by Fairchild Semiconductor is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Fairchild Semiconductor's reputation for quality, the SGH15N120RUFDTU is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 24 A
- Current - Collector Pulsed (Icm): 45 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 15A
- Power - Max: 180 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 108 nC
- Td (on/off) @ 25°C: 20ns/60ns
- Test Condition: 600V, 15A, 20Ohm, 15V
- Reverse Recovery Time (trr): 100 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
