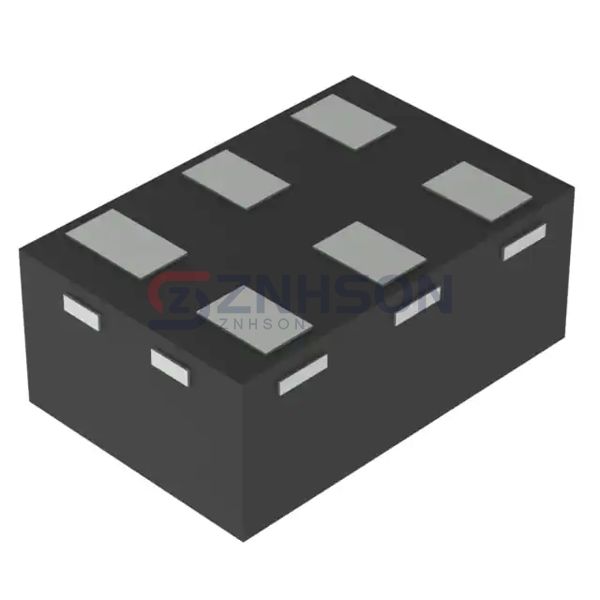

SN74LVC1G3157DRYR
Texas Instruments
Texas Instruments
IC SWITCH SPDT 6SON
$0.43
Available to order
Reference Price (USD)
5,000+
$0.09350
10,000+
$0.08525
25,000+
$0.07975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the SN74LVC1G3157DRYR - Texas Instruments's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The SN74LVC1G3157DRYR enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 1
- On-State Resistance (Max): 15Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 5.7ns, 3.8ns
- -3db Bandwidth: 340MHz
- Charge Injection: 7pC
- Channel Capacitance (CS(off), CD(off)): 5.2pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -54dB @ 10MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 6-UFDFN
- Supplier Device Package: 6-SON (1.45x1)
