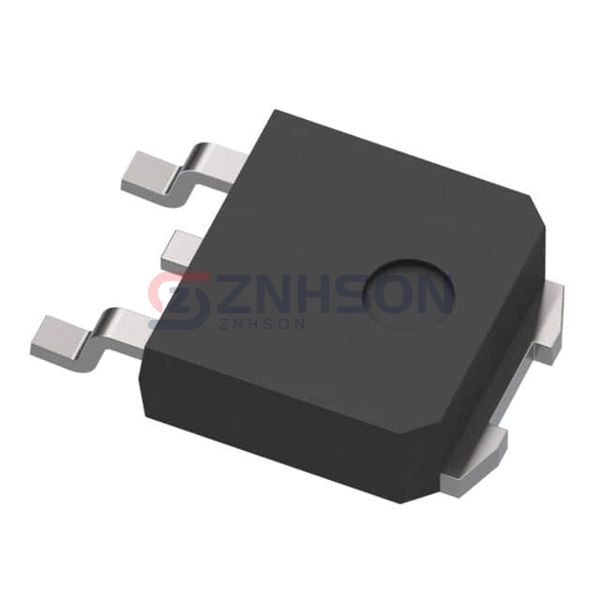

STGD20N45LZAG
STMicroelectronics
STMicroelectronics
POWER TRANSISTORS
$2.36
Available to order
Reference Price (USD)
2,500+
$1.00500
5,000+
$0.97200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the STGD20N45LZAG Single IGBT transistor from STMicroelectronics. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the STGD20N45LZAG ensures precision and reliability. STMicroelectronics's cutting-edge technology guarantees a component that meets the highest industry standards. Choose STGD20N45LZAG for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 450 V
- Current - Collector (Ic) (Max): 25 A
- Current - Collector Pulsed (Icm): 50 A
- Vce(on) (Max) @ Vge, Ic: 1.25V @ 4V, 6A
- Power - Max: 125 W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: 26 nC
- Td (on/off) @ 25°C: 1.1µs/4.6µs
- Test Condition: 300V, 10A, 1kOhm, 5V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: D-PAK (TO-252)
