STGP8NC60KD
STMicroelectronics
STMicroelectronics
IGBT 600V 15A 65W TO220
$1.53
Available to order
Reference Price (USD)
1+
$1.21000
50+
$1.02900
100+
$0.84530
500+
$0.69826
1,000+
$0.55125
2,500+
$0.51450
5,000+
$0.49000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STGP8NC60KD Single IGBT transistor by STMicroelectronics, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the STGP8NC60KD ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the STGP8NC60KD for unmatched power control.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 15 A
- Current - Collector Pulsed (Icm): 30 A
- Vce(on) (Max) @ Vge, Ic: 2.75V @ 15V, 3A
- Power - Max: 65 W
- Switching Energy: 55µJ (on), 85µJ (off)
- Input Type: Standard
- Gate Charge: 19 nC
- Td (on/off) @ 25°C: 17ns/72ns
- Test Condition: 390V, 3A, 10Ohm, 15V
- Reverse Recovery Time (trr): 23.5 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220
Related Products
IXYS
IXYK200N65B3
Infineon Technologies
IRGP4263PBF
IXYS
IXGH30N120C3H1
Fairchild Semiconductor
FGA40T65UQDF
Infineon Technologies
IKFW50N60DH3XKSA1
STMicroelectronics
STGW20H60DF
NTE Electronics, Inc
NTE3322
onsemi

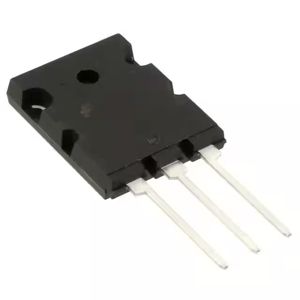

FGL60N100BNTD
