STGWT40V60DF
STMicroelectronics
STMicroelectronics
IGBT 600V 80A 283W TO3P-3
$4.58
Available to order
Reference Price (USD)
1+
$4.96000
30+
$4.21000
120+
$3.64867
510+
$3.10602
1,020+
$2.61954
2,520+
$2.49480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier performance with the STGWT40V60DF Single IGBT transistor from STMicroelectronics. As a key player in Discrete Semiconductor Products, this IGBT offers excellent thermal management and high switching frequency. Perfect for applications like server power supplies, LED lighting, and telecommunications, the STGWT40V60DF ensures energy efficiency and reliability. Trust STMicroelectronics's expertise to deliver a component that enhances your power electronics with superior functionality.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 40A
- Power - Max: 283 W
- Switching Energy: 456µJ (on), 411µJ (off)
- Input Type: Standard
- Gate Charge: 226 nC
- Td (on/off) @ 25°C: 52ns/208ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 41 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
Related Products
Alpha & Omega Semiconductor Inc.
AOK60B65H1
Infineon Technologies
IKP39N65ES5XKSA1
Infineon Technologies
IKW75N60TFKSA1
onsemi
FGA25N120ANTDTU
IXYS
IXYT20N120C3D1HV

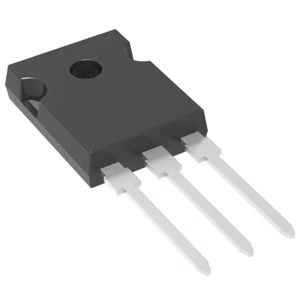

Rohm Semiconductor
